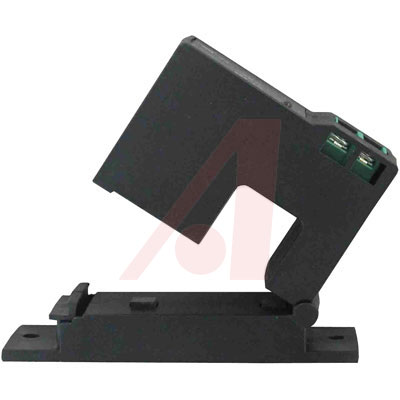

CCT50-102图片1
CCT50-102图片2
CCT50-102图片3
CCT50-102概述

Transformer; Current; CCT50-102; Split

The Series CCT40/50 Current Transformers are a low cost alternative for measuring power and monitoring the operation of fans, pumps, or other equipment. For use on existing installations, split core models can be installed without disconnecting cables. Each model offers three jumper selectable ranges and a choice of three different outputs.

**Specifications:**

* Amperage Range: Field selectable; up to 200 A depending on model.

* Output: 0 to 5 V, 0 to 10 V, or 4 to 20 mA depending on model.

* Power Requirements: Self powered or 15 to 42 VDC loop powered depending on model.

* Accuracy: 1%.

* Temperature Limits: -22 to 158…F -30 to 70…C.

* Humidity Limits: 0 to 95% non-condensing.

* Response Time: 250 ms to 90%.

* Isolation Voltage: 2000 V.

* Frequency: 10 to 400 Hz.

* Enclosure Rating: UL, 94 V-O flammability rated, ABS plastic housing.

* Approvals: CE, cUL, UL.

CCT50-102中文资料参数规格
技术参数

频率 10Hz ~ 400Hz

精度 1 %

物理参数

工作温度 -30℃ ~ 70℃

其他

Accuracy 1 %

Brand/Series CCT40/50 Series

Configuration Split Core

Dimensions 102 x 64 x 32 mm

For Use With measuring power and monitoring the operation of fans, pumps, or other equipment.

Frequency 10 to 400 Hz

Function Current

Mounting Type Panel Mount

Phase 1

Power Output 0 to 5 V

Primary Type Current

Range, Measurement 100/150/200 A

Standards CE, cUL, UL

Technology Inductive

Temperature, Operating -30 to 70 °C

Transformer Type Split-Core

Type Current

数据手册

在线购买CCT50-102
型号: CCT50-102
制造商: Dwyer Instruments
描述:Transformer; Current; CCT50-102; Split
