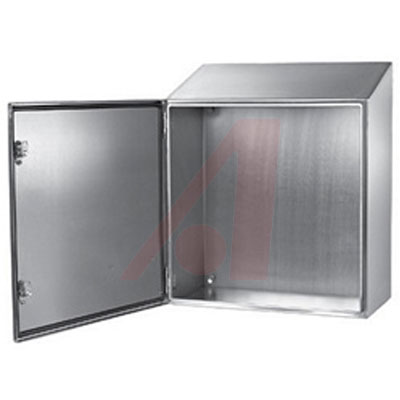

Enclosure; Sloping; Steel; 24.0 x 24.0 x 8in.; Hinged; Qrtr-Turn Latch; IP66
**APPLICATION**
For indoor or outdoor applications that require a sloped top and corrosion protection from chemicals and water. CONCEPT™ Enclosures feature streamlined styling with an attractive stroked finish and flush, stainless steel quarter-turn Latch for secure closure.
**SPECIFICATIONS**
* Manufactured from 16 and 14 gauge Type 304 stainless steel
* 20 degree sloped top prevents pooling of liquids and accumulation of other debris
* Minimum-width body flange provides maximum body opening
* External formed 90-degree body flange
* Panel mounting studs fit optional CONCEPT panels and other accessories
* Mounting holes in back of body for direct mounting or for optional external mounting brackets
* Type 304 stainless steel hidden hinges two hinges on models under 36 in. in height; three hinges for models 36 in.and taller
* Corner-formed doors are interchangeable and easily removed by pulling clip-style hinge pins
* Provision on door for thermoplastic data pocket
* Provision on door for optional door stop kit
* Seams continuously welded and ground smooth
* Stainless steel quarter-turn Latch furnished with flush slotted insert
* Seamless foam-in-place gasket
* Self-grounding latch system with double seal
* Bonding provision on door; grounding stud on body
* Furnished hardware kit consists of panel-mounting nuts, panelgrounding hardware and sealing washers for wall-mounting holes
* Installation instructions
**FINISH**
Door and body have smooth, #4 brushed finish.
