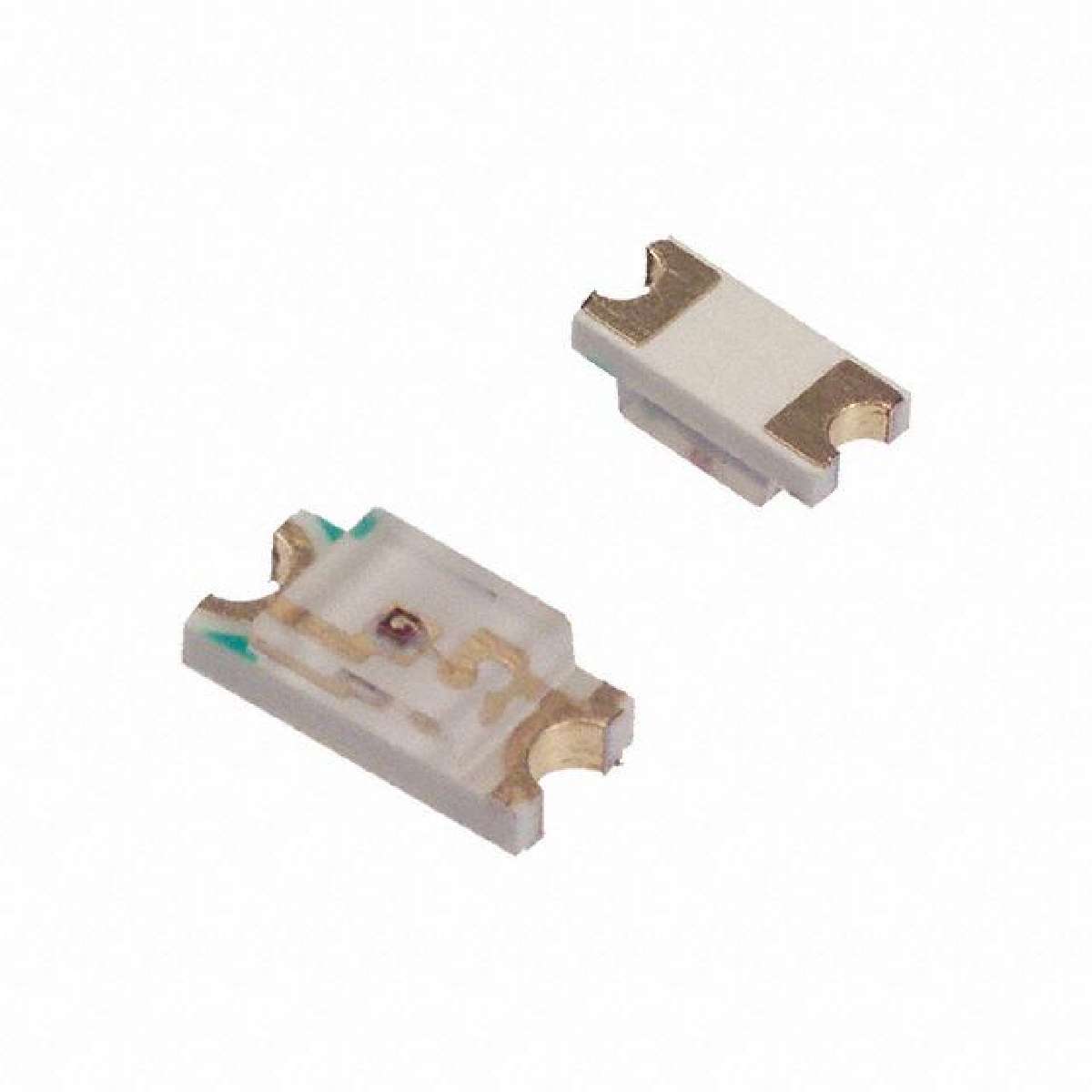

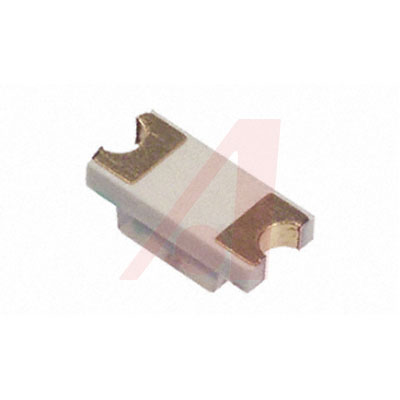

CMD15-21 系列 黄色 1206 140° 6 mcd 透明 2 V 表面贴装 LED
The 4302F series high brightness output s have integral current limiting resistor. They are TTL compatible and require no external current limiter with 5 volt or 12 volt supply. The have a wide viewing angle of 60°
得捷:
LED YELLOW CLEAR 1206 SMD
e络盟:
发光二极管, 黄色, 1.5MM X 2MM, 6MCD, 585NM, 整卷
艾睿:
LED Uni-Color Yellow 585nm 2-Pin Chip 12063216Metric T/R
Allied Electronics:
LED YELLOW CLEAR 1206 SMD
Verical:
LED Uni-Color Yellow 585nm 2-Pin Chip 12063216Metric T/R
额定功率 105 mW
正向电压 2 V
波长 585 nm
发光强度 6 mcd
视角 140°
峰值波长 585 nm
耗散功率 105 W
测试电流 20 mA
正向电流 20 mA
正向电压Max 2.8 V
正向电流Max 30 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 105 mW
电源电压 12 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.30 mm
封装公制 3216
封装 1206
颜色 Yellow
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CMD15-21VYC/TR8 Visual Communications Company | 当前型号 | 当前型号 |
VAOL-S12YP4 Visual Communications Company | 类似代替 | CMD15-21VYC/TR8和VAOL-S12YP4的区别 |
15-21VYC/TR8 芝加哥微型照明 | 功能相似 | CMD15-21VYC/TR8和15-21VYC/TR8的区别 |
