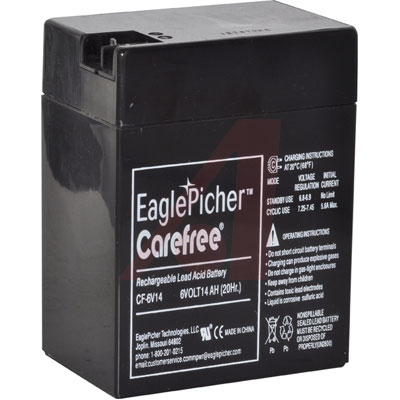

CF6V14

Battery; 6V; Lead Acid; 14Ah 20 hr. Rate 0.7A to 1.75V; Rechargeable

**Features:

**

* 100% Capacity After Multiple Discharges**

**

* Stand-By or Cyclic Service**

**

* No Memory**

**

* Maintenance-Free**

**

* Lead Calcium Grid**

**

* Rechargeable**

**

* Absorbed Glass Mat Design**

**

* Compact and Lightweight**

**

* Optional Terminal Orientation Available**

**

* Unrestricted Air Shipment**

For Use In

**

* Security Systems**

**

* Emergency Lighting Systems**

**

* Computer Stand-By**

**

* Portable TVs and Radios**

**

* Electronic Cash Registers**

**

* UPS Systems**

**

* Portable Medical Equipment**

**

* Telephone Equipment**

**

* Toys**

**

* And Many Others**

“A” Tab-Type Terminal:

.

*Brass Tin-Plated 0.187" × 0.031" 15° angle standard.**

“C” Tab-Type Terminal:

.

*Brass Tin-Plated, Tab-Type 0.250" × 0.030" 15° angle standard.**

“P” Terminal:

.

*Post with bolt and nut. Cast lead available on 12 AH batteries.**

Standard Terminals:

.

* Are recessed terminals, negative is 0.187" wide × 0.03" thick; positive is 0.250" × 0.03" thick.**

Lead Terminals:

.

* 0.50" length × 0.18" width × 0.92" height with 0.25" diameter hole through the terminal.
