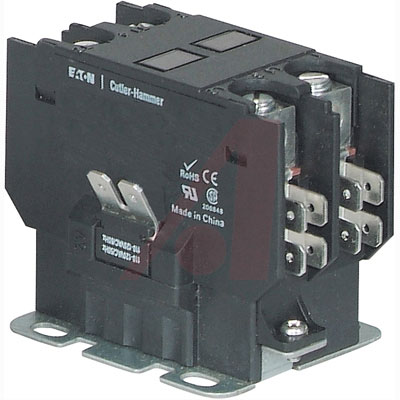

EATON CUTLER HAMMER C25BNB240T Contactor, 600VAC, 2Pole, DPST, Panel, 50A, 24V
Cutler-Hammer® 25-40 A, single- and double-pole, Type C25 contactors from Eaton"s electrical business feature a compact, efficient design with a low VA coil and straight-through wiring. New contactor housing design effectively limits dust and other contaminants from entering the magnet structure which reduces or eliminates noise. These economically priced, UL recognized/ CSA certified, ampere rated devices are well suited for use in heating/air conditioning, refrigeration, data processing and food service applications.
**Features:**
* Insulation Voltage: 690 V
* Current Rated and HP/kW Rated
* Contacts: Double Break
* Magnet Coil: Class F, 155°C
* Contact Arc Covers Are Standard on All Contactors
* Standard Power Terminals 5⁄16" Hex Washer Head Screws and Quad 4 Quick Connect Terminals on Each Line and Load Terminations
* Contactors are Marked with Line and Load Terminal Designations
* Operating Temperature Range: –13 to 158°F –25 to +70°C
* Terminal Wire Range — Hex Washer Head Screws: 16-10 AWG, 30 Lb.-In. Torque Rating
* Mounting Position: Vertical, Horizontal or Tabletop
* UL Recognized, CSA Certified, IEC 60947-4-1, EN 60947-4-1, ARI 780/790 Standard, RoHs Compliance
