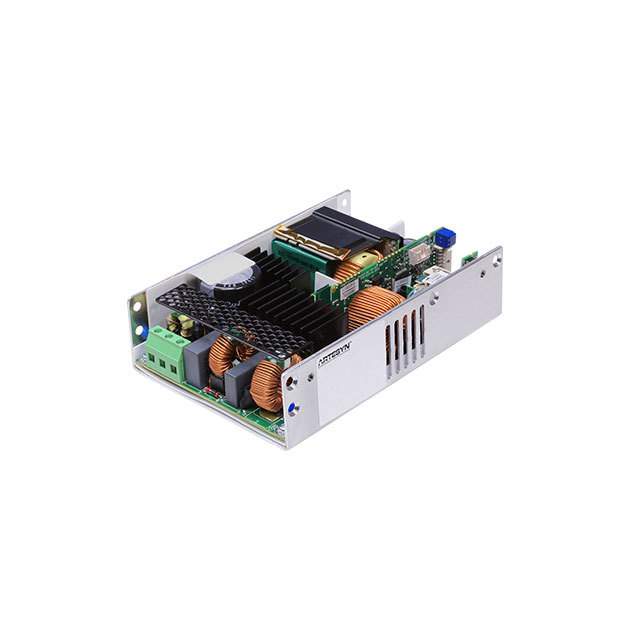

CNS658-MU

AC/DC 开框电源 供电单元, ITE & 医用, 1输出, 400 W, 650W @ 400LFM, 90V AC至264V AC, 固定/可调, 48 V

The from is a CNS650-M series 650W AC to DC power supply. This power supply is designed for forced air and natural convection cooling. UL/CSA No. 60950-1, UL 60950-1/C22.2, No. 60601-1, ES60601-1/C22.2, TUV EN 60601-1, DEMKO EN 60950-1, CB IEC 60950-1, IEC 60601-1, IEC 62368-1 and CCC GB4943.1/GB9254; GB17625.1 safety standards.

.

Input voltage range from 90VRMS to 264VRMS

.

48V output voltage, 8.3A max continuous load free air, 13.5A max peak load free air

.

±2% regulation, 480mV ripple p-p, PMBus® interface

.

Medical and ITE safety approvals, 2x MOPP

.

Dual fused, type BF ready, built-in class B EMI filter

.

Less than 1U high

.

<500mW no-load power consumption, inrush current is 50Apk, cold start

.

Overvoltage, overload and overtemperature protection

.

4" x 6" U-channel construction

.

Operating temperature range from -20°C to +80°C derate at 50°C, start-up at -40°C
