CMY210

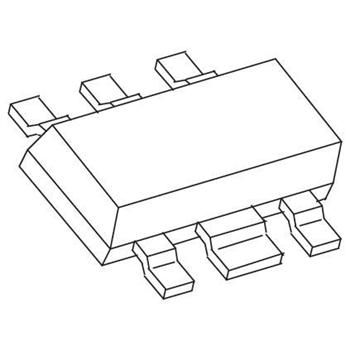

CMY210 集成电路IC 上下变频器 6脚 SOT-163 标记 M3S

GaAs MMIC

• Ultralinear Mixer with integrated LO-Buffer

• Very high Input-IP3 of typical 24 dBm

• Very low LO-Power demand of typ. 0 dBm

• Suited for Up- and Down-Conversion

• Wide LO-Frequency Range < 500 MHz to >2.5GHz

• Wide LO-Level Range

• Single ended Ports

• RF- and IF-Port Impedance 50 Ω

• Operating Voltage Range: < 3 to 6 V

• Very low Current Consumption of typical 6 mA

• All Gold Metallization

  ESD: Electrostatic discharge sensitive device Observe handling Precautions!
