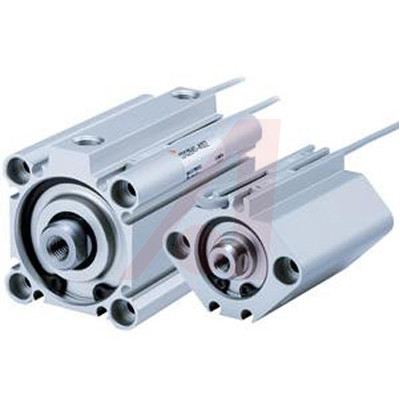

CDQ2A32-20DCZ

Cylinder, dbl act, sw cap, 32mm bore, 20mm stroke, bumper

Compact single and double acting cylinders, considerably shorter than corresponding tie rod designs.

* Space and weight saving

* Magnetic piston

* Proof pressure 15bar

* Operating pressure range 0.05MPa 0.51kgf/cm2 min to 10bar max

* Supplied with tapered and parallel ports

* Temperature range no freezing allowed -10°C to +70°C without auto switch, -10°C to +60°C with auto switch

* Internal female threaded rod ends

* Nitrile seals

* Lubrication not required
