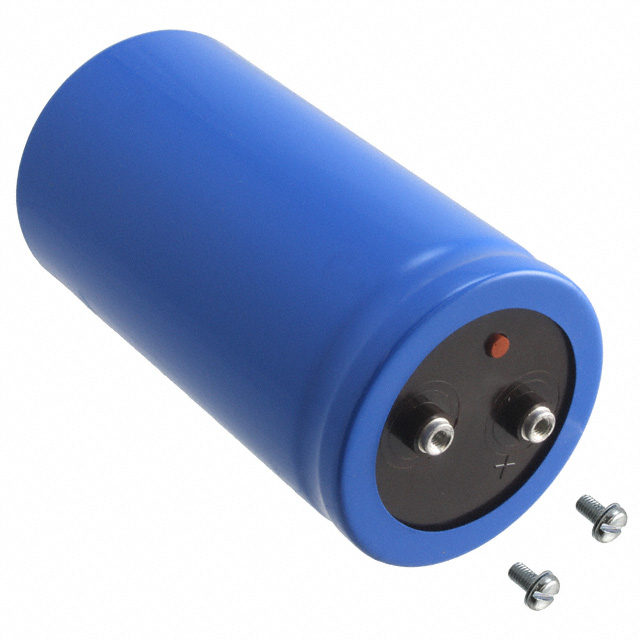

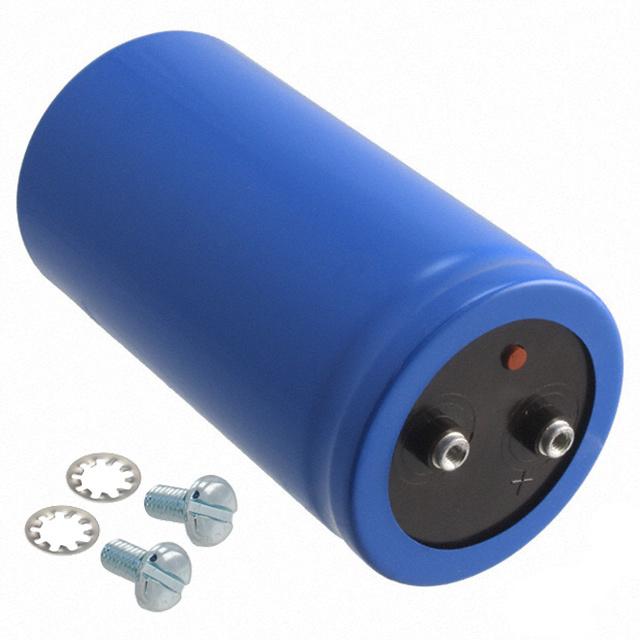

CGS602T300X8L

Cap Aluminum Lytic 6000uF 300V -10% to 50% 76.2 X 219.075mm Screw Terminal 0.022Ω 15900mA 85℃

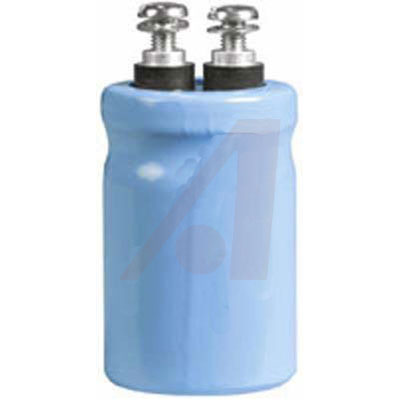

Type CGS screw terminal, aluminum electrolytic capacitors have a high CV rating and are suitable for use in most demanding applications requiring high current filtering or energy storage.

.

*

Features:

**

* Capacitance Range: 75 to 1,500,000 μF

* Tolerance: –10% +75% Up to 150 WVDC, –10% +50%, 200-450 WVDC

* Voltage Range: 6.3 to 500 WVDC

* Operating Temperature: –40°C to +85°C

* High CV Ratings

* High Current Filtering
