CES24050-16概述

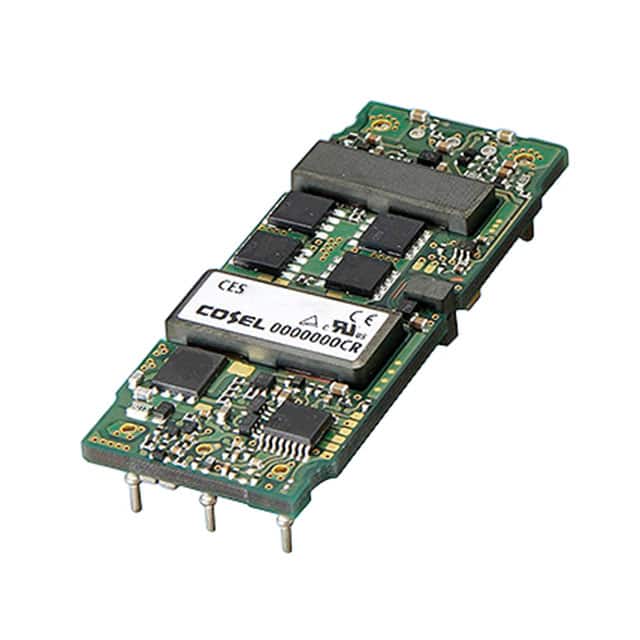

CES 系列 80 W 单输出 5 V 通孔 DC-DC 转换器 电源模块

**CES Series, 4-25A Single Output**

The CES series DC-DC converters offer a wide range of power ratings and output voltages making them extremely versatile and suitable for many applications. Additional feature include remote sensing, remote on/off and overcurrent and overvoltage protection.


得捷:
DC DC CONVERTER 5V


艾睿:
Module DC-DC 24VIN 1-OUT 5V 16A 80W 8-Pin 1/8-Brick


Allied Electronics:
Isolated DC-DC Converter, Vin 18 - 36 Vdc, Vout 5V, I/O isolation 1500V


Verical:
Module DC-DC 24VIN 1-OUT 5V 16A 80W 8-Pin 1/8-Brick


CDI:
80 Watt 24V to 5V Regulated Intermediate Bus DC/DC Converter


CES24050-16中文资料参数规格
技术参数

输出接口数 1

输出电压 5 V

输出电流 16 A

输出功率 80 W

隔离电压 1.5 kV

输入电压Max 36 V

输入电压Min 18 V

输出电流Max 16 A

工作温度Max 85 ℃

工作温度Min -40 ℃

输入电压 18V ~ 36V

封装参数

安装方式 Through Hole

引脚数 8

封装 DIP-8

外形尺寸

长度 2.28 in

宽度 0.9 in

高度 0.33 in

封装 DIP-8

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

制造应用 ITE(商业)

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买CES24050-16
型号: CES24050-16
制造商: Cosel
描述:CES 系列 80 W 单输出 5 V 通孔 DC-DC 转换器 电源模块
