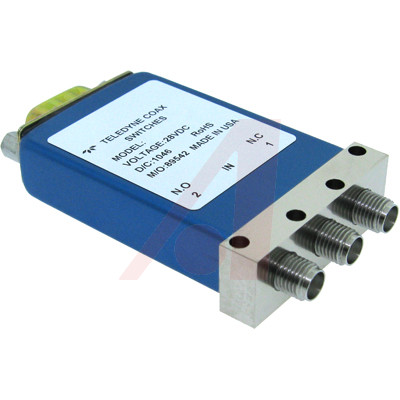

CCR-33S8O-R

Switch, COAXIAL, SPDT, 12V LATCHING, DC-18GHz, SMA CONNECTOR, POSITIVE + COMMON

Miniature 18GHz SPDT Switch, SMA Female Connector, Impedance 50 Ohms

.

* 18 GHz Isolation:** 60 dB, ** Insertion Loss:** 0.5 dB, ** VSWR:** 1.50:1. Models with indicator contacts, TTL drivers and other options are available.

The CCR-33 Switch is a broadband, SPDT, electromechanical, coaxial switch designed to switch a microwave signal from a common input to either of two outputs. The switches are small with connector spacing compatible with SMA connectors. The CCR-33 series s
