标准LED-SMD RED 2.0V 20MA
The CMDA19 series are small size industry standard 0603 footprint. Compatible with IR solder profiles and ideal for use with light pipes.
得捷:

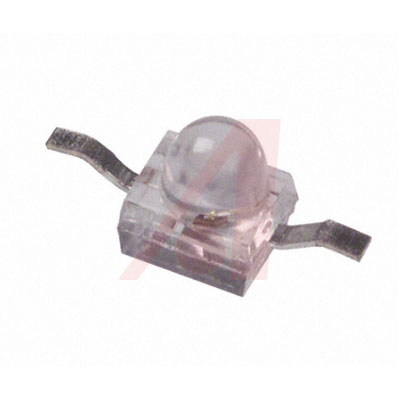

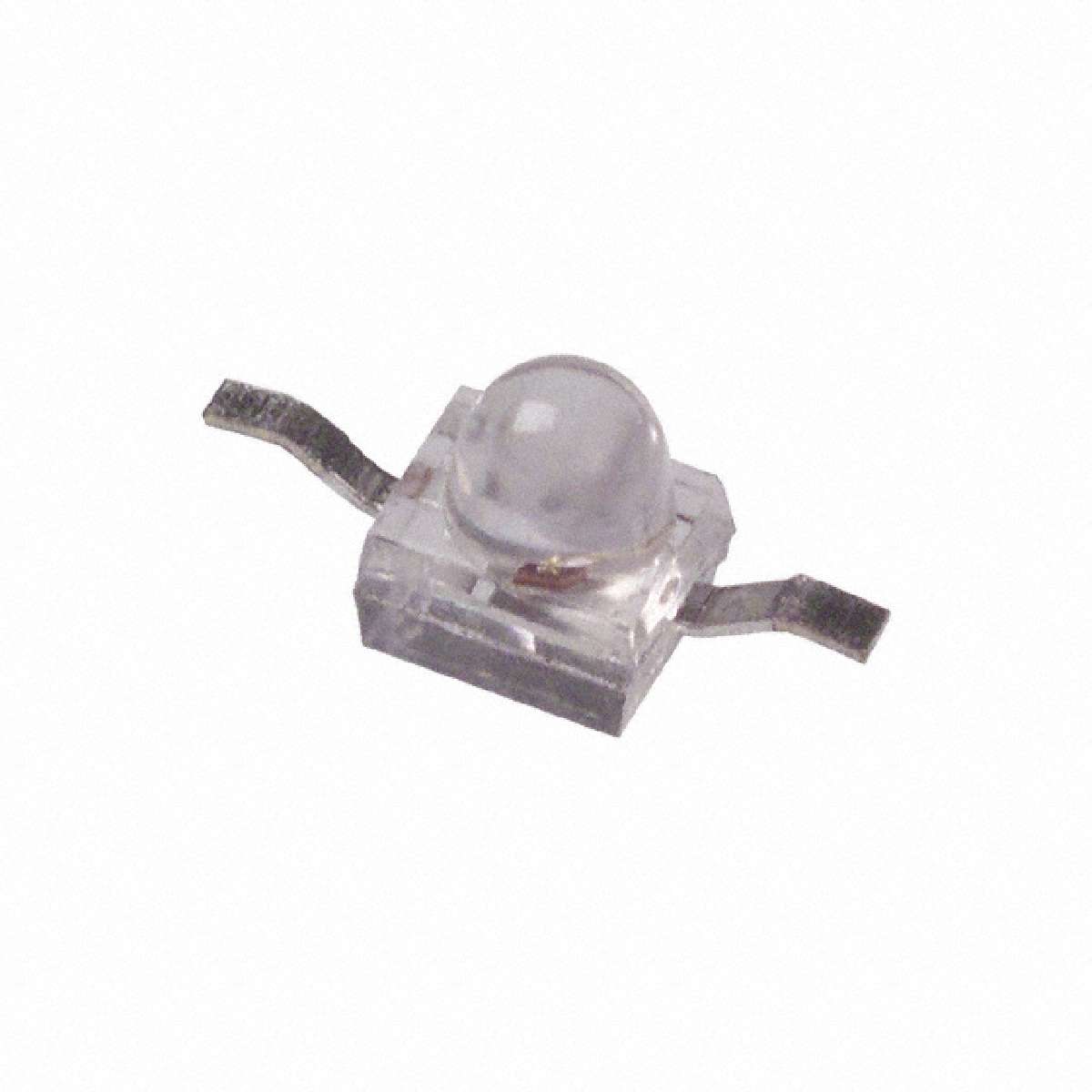

LED RED CLEAR Z-BEND SMD
贸泽:
标准LED-SMD RED 2.0V 20MA
艾睿:
LED Uni-Color Hi-Eff. Red 640nm 2-Pin SMD T/R
Allied Electronics:
LED RED CLEAR 2SMD
Win Source:
Red LED Indication - Discrete 2V 2-SMD, Z-Bend
正向电压 2 V
视角 25°
峰值波长 640 nm
耗散功率 105 mW
测试电流 20 mA
正向电流 20 mA
正向电压Max 2.8 V
正向电流Max 30 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 105 mW
电源电压 2.2 V
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 2.5 mm
宽度 2 mm
高度 3.00 mm
封装 SMD-2
颜色 Red
产品生命周期 Last Time Buy
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
