CCR-33S8C-T

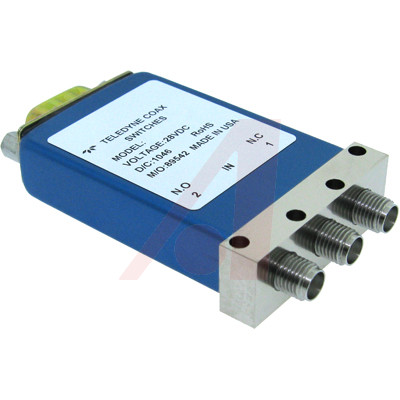

CCR-33S8C-T图片1
CCR-33S8C-T图片2
CCR-33S8C-T图片3
CCR-33S8C-T图片4
CCR-33S8C-T概述

RF Switch SPDT 0MHz to 18GHz 60dB

Miniature 18GHz SPDT Switch, SMA Female Connector, Impedance 50 Ohms

CCR-33 Series SPDT switches operate from DC-18 GHz.
.
* 18 GHz Isolation:** 60 dB, ** Insertion Loss:** 0.5 dB, ** VSWR:** 1.50:1. Models with indicator contacts, TTL drivers and other options are available.

The CCR-33 Switch is a broadband, SPDT, electromechanical, coaxial switch designed to switch a microwave signal from a common input to either of two outputs. The switches are small with connector spacing compatible with SMA connectors. The CCR-33 series s

CCR-33S8C-T中文资料参数规格
技术参数

极性 Female

频率 18 GHz

额定电流 0.14 A

触点类型 SPDT

针脚数 3

线圈电压 12 VDC

额定电压 12 VDC

封装参数

安装方式 Panel

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买CCR-33S8C-T
型号: CCR-33S8C-T
制造商: Teledyne Relays
描述:RF Switch SPDT 0MHz to 18GHz 60dB
