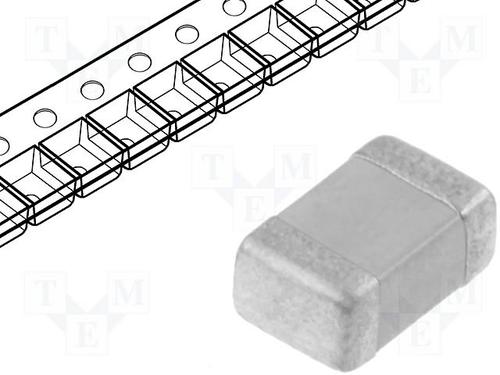

C0805C105K3RAC

表面贴装陶瓷贴片电容 - X7R电介质 - 容量扩展 Surface Mount Ceramic Chip Capacitors - X7R Dielectric - Capacitance Extensions

Electrical Parameters

As detailed in the KEMET Surface Mount Catalog F3102 for X7R,with the following specific requirements based on room temperature 25°C parameters:

· Operating Range: -55°C to +125°C, with no-bias capacitance shift limited to the ± 15% over that range.

· Insulating Resistance IR measured after 2 minutes at rated voltage @25°C: Limit is 500 megohm microfarads or 10,000MW, whichever of the two is smaller.

· Capacitance and Dissipation Factor DF are measured under the following conditions:

.

10µF

   120Hz and 0.5 Vrms if capacitance $ 10µF

· DF limits:

   50 -200 Volts ü 2.5%

   16 -25 Volts ü 3.5%

   6.3 / 10 Volts ü 5.0%

Soldering Process

All parts incorporate the standard KEMET barrier layer of pure nickel, with an overplate of pure tin to provide excellent solderability as well as resistance to leaching. The recommended mounting techniques are as follows:

· 0402 / 1210 case sizes ü Solder Reflow

· 0603 / 0805 / 1206 case sizes ü Solder Wave / Solder Reflow
