Common Mode Chokes Dual 9.8mH 1A 319mOhm DCR Thru-Hole
9.8mH @ 10kHz 2 Line Common Mode Choke Through Hole 1A DCR 319mOhm
得捷:
CMC 9.8MH 1A 2LN TH ESD
贸泽:
Common Mode Chokes / Filters Inductor/Common Mode 1A RMS, 0.319ohm DCR
MASTER:
Common Mode Chokes Dual 9.8mH 1A 319mOhm DCR Thru-Hole
Electro Sonic:
Common Mode Chokes Dual 9.8mH 1A 319mOhm DCR Thru-Hole
额定电压AC 250 V
电感 9.8 mH
屏蔽 No
额定电流Max 1 A
电阻DC Max 319 mΩ
安装方式 Through Hole

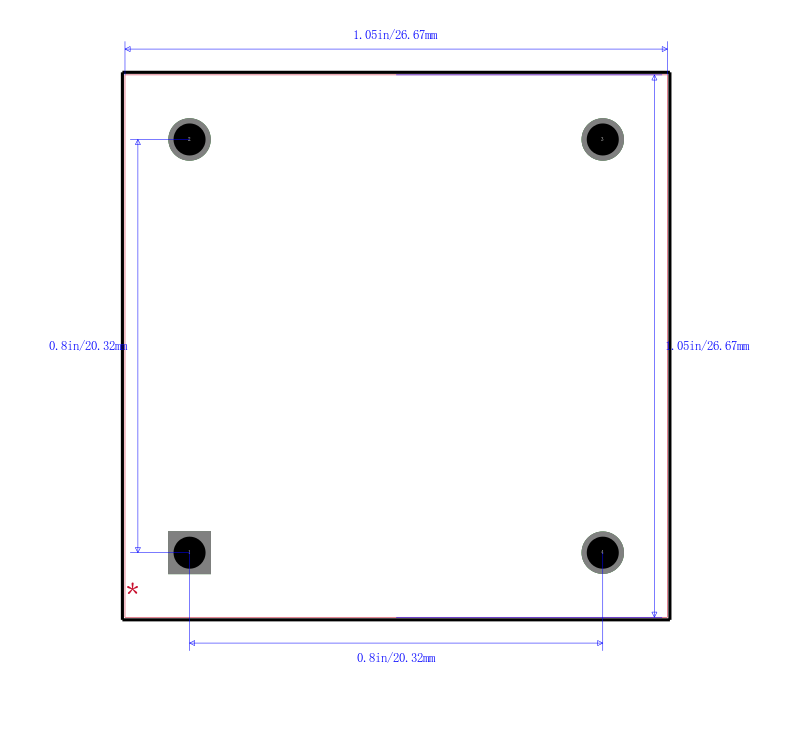

封装 1.050" L x 1.050" W x 1.075" H 26.67mm x 26.67mm x 27.31mm
长度 26.67 mm
宽度 26.67 mm
高度 20.32 mm
封装 1.050" L x 1.050" W x 1.075" H 26.67mm x 26.67mm x 27.31mm
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
HTS代码 8504504000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CME2425-5 Triad Magnetics | 当前型号 | 当前型号 |
CME2425-5-B Triad Magnetics | 完全替代 | CME2425-5和CME2425-5-B的区别 |
