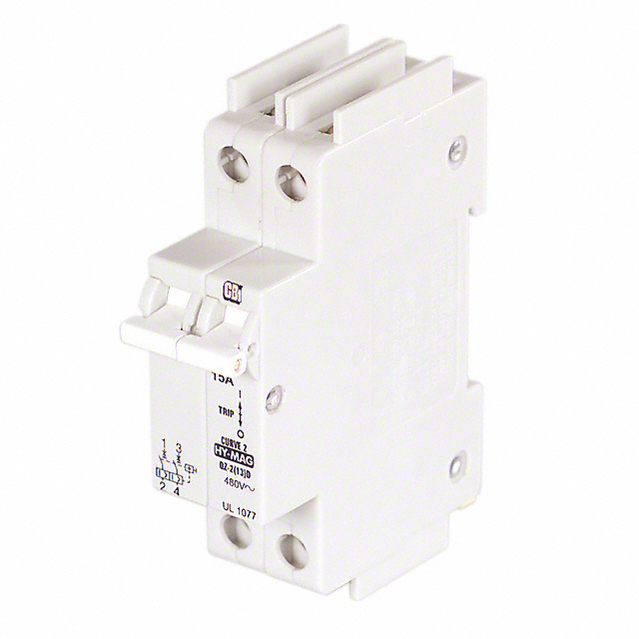

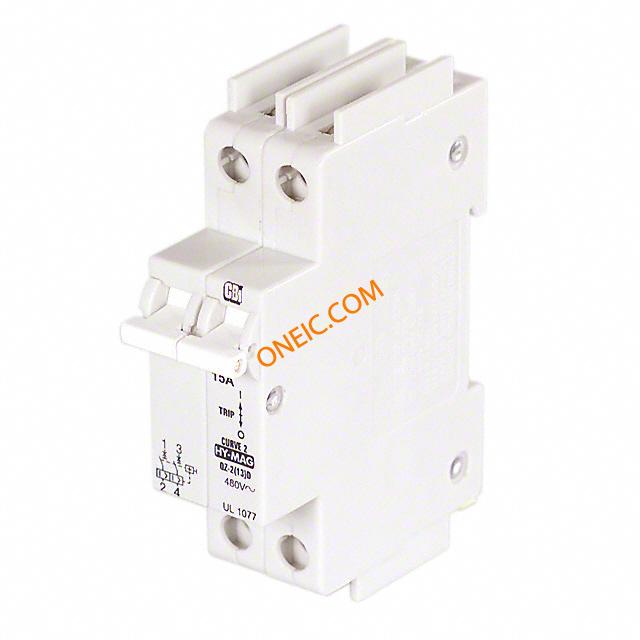

Circuit Breaker; Hyd/Mag; Hndl; Cur-Rtg 15A; DIN Rail; 2Pole; Vol-Rtg 277/480V
**Features:
**
* UL 1077 Approved**
**
* DIN Rail Mounted**
**
* Compact 13 mm Width**
**
* 100% Rating Capability**
**
* Hydraulic-Magnetic Technology**
**
* 277/480 VAC 50/60 Hz**
**
* Interrupting Capacity: 5000 A @ 120 V, 1000 A @ 277 V, 1000 A @ 480 V**
**
* Dielectric Strength 1960 V 50/60 Hz**
**
* Insulation Resistance 100 Megaohm**
**
* Operating Temperature Range –40°C to +60°C **
**
* Saves Space Along the DIN Rail**
**
* UL 1077 Approved**
**
* DIN Rail Mounted**
**
* Compact 13 mm Width**
**
* 100% Rating Capability**
**
* Hydraulic-Magnetic Technology**
**
* 277/480 VAC 50/60 Hz**
**
* Interrupting Capacity: 5000 A @ 120 V, 1000 A @ 277 V, 1000 A @ 480 V**
**
* Dielectric Strength 1960 V 50/60 Hz**
**
* Insulation Resistance 100 Megaohm**
**
* Operating Temperature Range –40°C to +60°C **
**
* Saves Space Along the DIN Rail
