CD74ACT258MG4

四2输入多路复用器具有三态输出 Quad 2-Input Multiplexer with Three-State Outputs

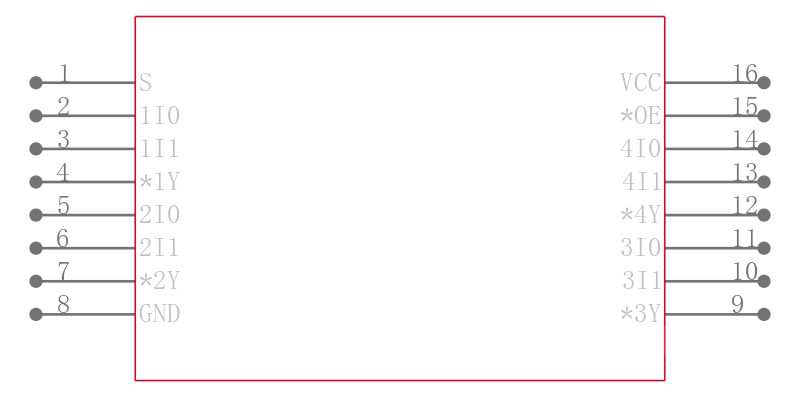

Description

The ’AC257, ’ACT257 and CD74ACT258 are quad 2-input multiplexers with three-state outputs that utilize Advanced CMOS Logic technology. Each of these devices selects four bits of data from two sources under the control of a common Select input S. The Output Enable OE is active LOW. WhenOE is HIGH, all of the outputs Y orY are in the high impedance state regardless of all other input conditions.

Features

• ’AC257, ’ACT257. . . . . . . . . . . . . Non-Inverting Outputs

• CD74ACT258 . . . . . . . . . . . . . . . . . . . Inverting Outputs

• Buffered Inputs

• Typical Propagation Delay

\- 4.4ns at VCC= 5V, TA= 25oC, CL= 50pF

• Exceeds 2kV ESD Protection MIL-STD-883, Method 3015

• SCR-Latchup-Resistant CMOS Process and Circuit Design

• Speed of Bipolar FAST™/AS/S with Significantly Reduced Power Consumption

• Balanced Propagation Delays

• AC Types Feature 1.5V to 5.5V Operation and Balanced Noise Immunity at 30% of the Supply

• ±24mA Output Drive Current

\- Fanout to 15 FAST™ ICs Drives 50ΩTransmission Lines
