CRCW2512150RFKEGHP

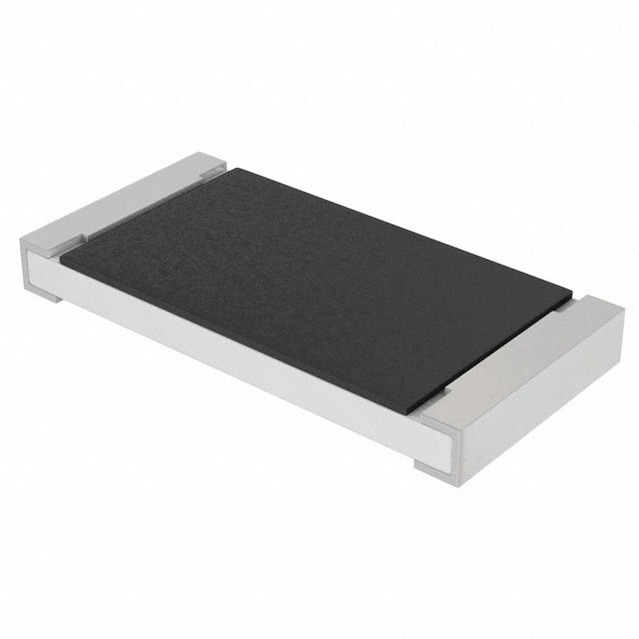

CRCW2512150RFKEGHP图片1
CRCW2512150RFKEGHP图片2
CRCW2512150RFKEGHP图片3
CRCW2512150RFKEGHP概述

电阻, AEC-Q200, 厚膜, 150R, 2512

CRCW-HP Series 2512 1.5 W 150 Ohm ±1 % ±100 ppm/K SMT Thick Film Chip Resistor


立创商城:
150Ω ±1% 1.5W


e络盟:
电阻, AEC-Q200, 厚膜, 150R, 2512


艾睿:
The CRCW2512150RFKEGHP fixed single surface-mount resistor from Vishay makes it easy to add resistors to your circuit board. This durable part has a power rating of 1.5 W. This product has a resistance value of 150 Ohm. Its temperature coefficient is ±100 ppm/°C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a tolerance of 1%. This product is 6.3 mm long, 0.6 mm tall and 3.15 mm deep. This part has an operating temperature of -55 to 155 °C. This device is made with thick film technology.


Verical:
Res Thick Film 2512 150 Ohm 1% 1.5W ±100ppm/C Pad SMD Automotive T/R


CRCW2512150RFKEGHP中文资料参数规格
技术参数

额定功率 1.5 W

产品系列 Vishay_Dale

电阻 150 Ω

阻值偏差 ±1 %

额定功率Max 1.5 W

工作温度Max 155 ℃

工作温度Min -55 ℃

额定电压 500 V

封装参数

封装公制 6432

封装 2512

外形尺寸

长度 6.4 mm

宽度 3.2 mm

高度 0.6 mm

封装公制 6432

封装 2512

物理参数

温度系数 ±100 ppm/K

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准

含铅标准 Lead Free

数据手册

CRCW2512150RFKEGHP引脚图与封装图

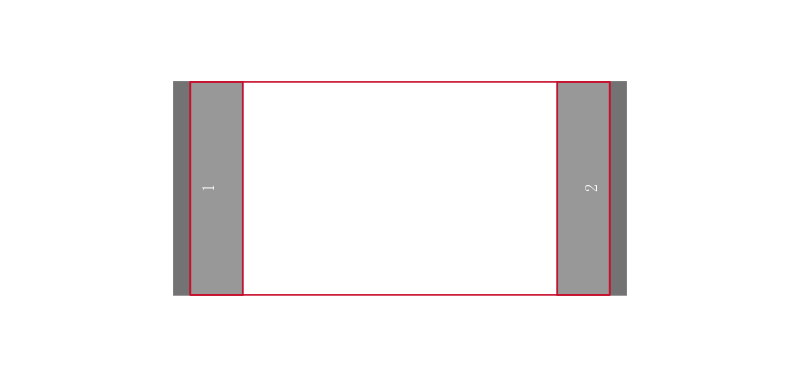

CRCW2512150RFKEGHP引脚图

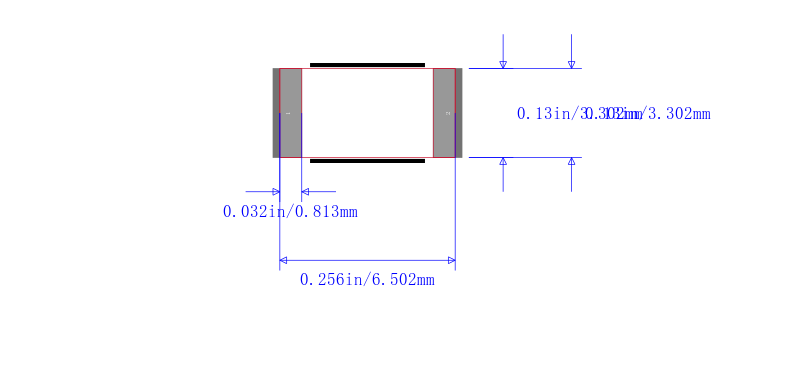

CRCW2512150RFKEGHP封装图
CRCW2512150RFKEGHP封装焊盘图
在线购买CRCW2512150RFKEGHP
型号: CRCW2512150RFKEGHP
制造商: VISHAY 威世
描述:电阻, AEC-Q200, 厚膜, 150R, 2512
