CRCW040210K0FKEE

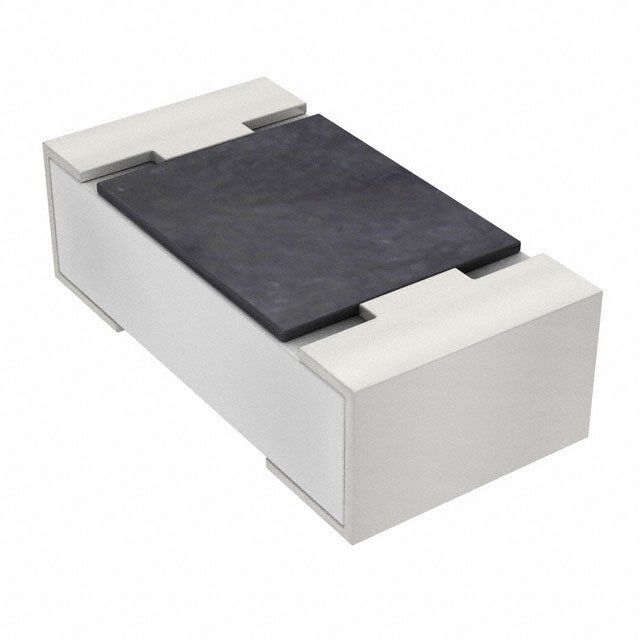

CRCW040210K0FKEE图片1
CRCW040210K0FKEE图片2
CRCW040210K0FKEE图片3
CRCW040210K0FKEE概述

电阻, AEC-Q200, 厚膜, 10K, 0402

CRCW Series 0402 0.063W 10 kOhm ±1% ±100 ppm/K SMT Thick Film Chip Resistor


立创商城:
10kΩ ±1% 63mW


e络盟:
电阻, AEC-Q200, 厚膜, 10K, 0402


艾睿:
The CRCW040210K0FKEE fixed single surface-mount resistor from Vishay makes it easy to add resistors to your circuit board. This product has a resistance value of 10K Ohm. This dependable part has a power rating of 0.063 1/16 W. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%. This device is made with thick film technology.


Verical:
Res Thick Film 0402 10K Ohm 1% 0.063W1/16W ±100ppm/C Pad SMD Automotive T/R


CRCW040210K0FKEE中文资料参数规格
技术参数

额定功率 0.063 W

产品系列 Vishay_Dale

电阻 10 kΩ

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

额定电压 50 V

封装参数

封装公制 1005

封装 0402

外形尺寸

长度 1 mm

宽度 0.5 mm

高度 0.35 mm

封装公制 1005

封装 0402

物理参数

温度系数 ±100 ppm/K

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准

含铅标准 Lead Free

数据手册

在线购买CRCW040210K0FKEE
型号: CRCW040210K0FKEE
制造商: VISHAY 威世
描述:电阻, AEC-Q200, 厚膜, 10K, 0402
