CRCW201034K8FKEF

CRCW201034K8FKEF图片1
CRCW201034K8FKEF图片2
CRCW201034K8FKEF图片3
CRCW201034K8FKEF概述

2010 34.8kΩ ±1% 3/4W ±100ppm/℃

RES SMD 34.8K OHM 1% 3/4W 2010


贸泽:
Thick Film Resistors - SMD 3/4watt 34.8Kohms 1%


艾睿:
This is a CRCW201034K8FKEF fixed single surface-mount resistor from Vishay. This part has a power rating of 0.75 3/4 W. This product has a resistance value of 34.8K Ohm. Its temperature coefficient is ±100 ppm/°C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This part has an operating temperature of -55 to 155 °C. This product is 5 mm long, 0.6 mm tall and 2.5 mm deep. This device utilizes thick film technology. It has a tolerance of 1%.


立创商城:
CRCW201034K8FKEF


Verical:
Res Thick Film 2010 34.8K Ohm 1% 0.75W3/4W ±100ppm/C Pad SMD Automotive T/R


CRCW201034K8FKEF中文资料参数规格
技术参数

额定功率 0.75 W

产品系列 Vishay_Dale

电阻 34.8 KΩ

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min 55 ℃

额定电压 400 V

封装参数

封装公制 5025

封装 2010

外形尺寸

长度 5 mm

宽度 2.5 mm

高度 0.6 mm

封装公制 5025

封装 2010

物理参数

工作温度 55℃ ~ 155℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

数据手册

CRCW201034K8FKEF引脚图与封装图

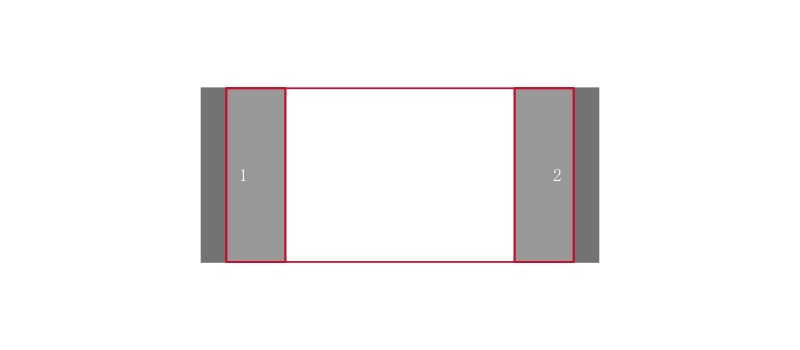

CRCW201034K8FKEF引脚图

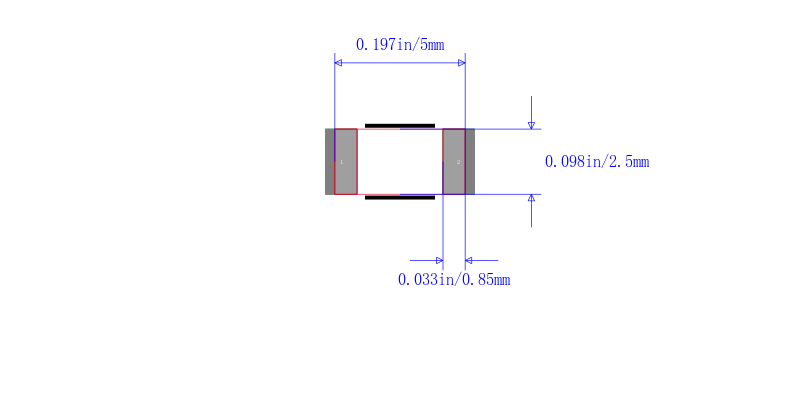

CRCW201034K8FKEF封装图
CRCW201034K8FKEF封装焊盘图
