CRCW251256K0JNEG

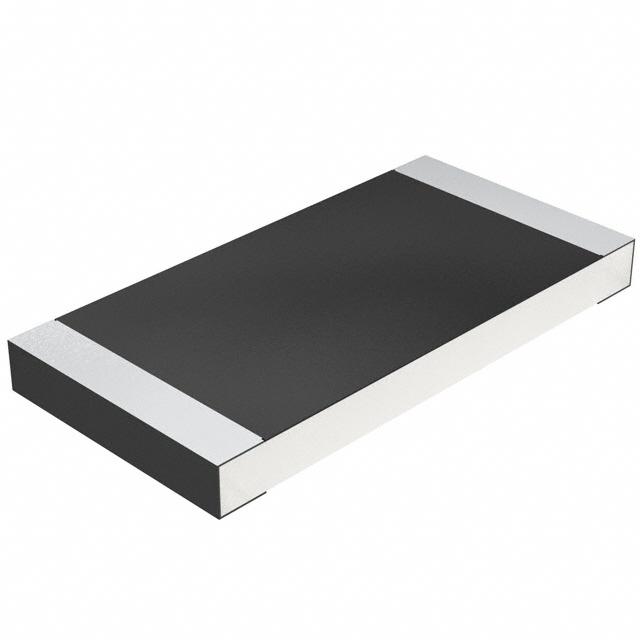

CRCW251256K0JNEG图片1
CRCW251256K0JNEG图片2
CRCW251256K0JNEG图片3
CRCW251256K0JNEG概述

2512 56kΩ ±5% 1W ±200ppm/℃

CRCW Series 2512 1 W 56 kOhm ±5 % ±200 ppm/K SMT Thick Film Chip Resistor


立创商城:
56kΩ ±5% 1W


贸泽:
Thick Film Resistors - SMD 1watt 56Kohms 5%


艾睿:
Use this CRCW251256K0JNEG fixed single surface-mount resistor from Vishay to obtain a visually clean layout. This durable part has a power rating of 1 W. This product has a resistance value of 56K Ohm. Its temperature coefficient is ±200 ppm/°C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has a tolerance of 5%. This product is 6.3 mm long, 0.6 mm tall and 3.15 mm deep. This part has an operating temperature of -55 to 155 °C. This device is made with thick film technology.


安富利:
Res Thick Film 2512 56K Ohm 5% 1W ±200ppm/°C Molded SMD SMD Blister T/R


Verical:
Res Thick Film 2512 56K Ohm 5% 1W ±200ppm/C Pad SMD Automotive T/R


Win Source:
RES SMD 56K OHM 5% 1W 2512


CRCW251256K0JNEG中文资料参数规格
技术参数

额定功率 1 W

产品系列 Vishay_Dale

电阻 56 kΩ

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min 55 ℃

额定电压 500 V

封装参数

安装方式 Surface Mount

封装公制 6432

封装 2512

外形尺寸

长度 6.3 mm

宽度 3.15 mm

高度 0.6 mm

封装公制 6432

封装 2512

物理参数

工作温度 55℃ ~ 155℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

CRCW251256K0JNEG引脚图与封装图
CRCW251256K0JNEG引脚图
CRCW251256K0JNEG封装图
CRCW251256K0JNEG封装焊盘图
在线购买CRCW251256K0JNEG
型号: CRCW251256K0JNEG
制造商: VISHAY 威世
描述:2512 56kΩ ±5% 1W ±200ppm/℃
替代型号CRCW251256K0JNEG
型号/品牌 代替类型 替代型号对比

CRCW251256K0JNEG

VISHAY 威世

当前型号

当前型号

ERJ1TYJ563U

松下

功能相似

CRCW251256K0JNEG和ERJ1TYJ563U的区别
