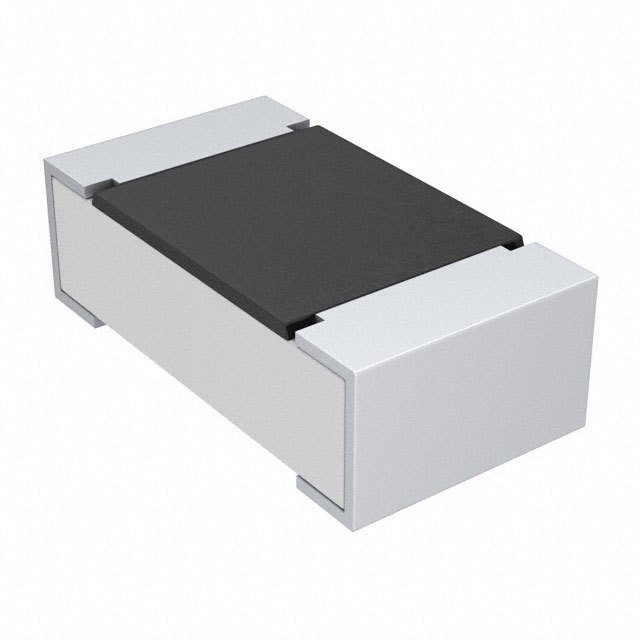

CRCW0603100RJNEAHP图片1
CRCW0603100RJNEAHP图片2
CRCW0603100RJNEAHP图片3
CRCW0603100RJNEAHP图片4
CRCW0603100RJNEAHP图片5
CRCW0603100RJNEAHP图片6
CRCW0603100RJNEAHP概述

0603 100Ω ±5% 0.25W1/4W ±200ppm/℃

CRCW Series 0603 0.25 W 100 Ohm ±5% ±200 ppm/K Thick Film Chip Resistor


立创商城:
100Ω ±5% 333.333mW


艾睿:
Use this CRCW0603100RJNEAHP fixed single surface-mount resistor from Vishay to obtain a visually clean layout. This product has a resistance value of 100 Ohm. This part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±200 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 5%. This part has an operating temperature of -55 to 155 °C. This device is made with thick film technology. This product is 1.6 mm long, 0.45 mm tall and 0.85 mm deep.


Verical:
Res Thick Film 0603 100 Ohm 5% 0.33W1/3W ±200ppm/C Pad SMD Automotive T/R


Win Source:
RES SMD 100 OHM 5% 1/3W 0603 / 100 Ohms ±5% 0.333W, 1/3W Chip Resistor 0603 1608 Metric Automotive AEC-Q200, Pulse Withstanding Thick Film


CRCW0603100RJNEAHP中文资料参数规格
技术参数

额定功率 0.25 W

产品系列 Vishay_Dale

电阻 100 Ω

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

封装公制 1608

封装 0603

外形尺寸

长度 1.6 mm

宽度 0.8 mm

高度 0.45 mm

封装公制 1608

封装 0603

物理参数

温度系数 ±200 ppm/℃

其他

包装方式 Tape & Reel TR

符合标准

RoHS标准

数据手册

CRCW0603100RJNEAHP引脚图与封装图
CRCW0603100RJNEAHP引脚图

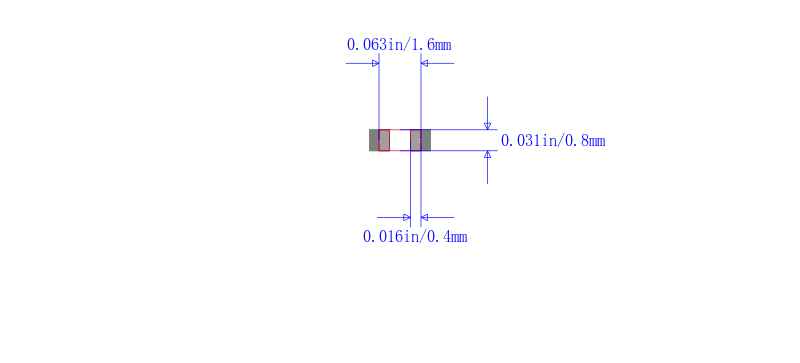

CRCW0603100RJNEAHP封装图

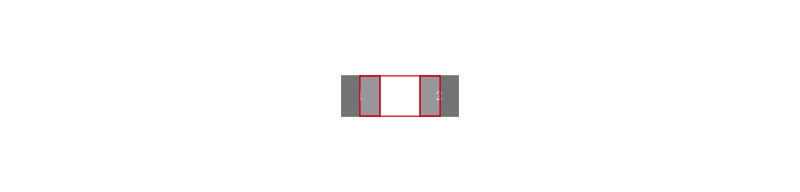

CRCW0603100RJNEAHP封装焊盘图
在线购买CRCW0603100RJNEAHP
型号: CRCW0603100RJNEAHP
制造商: VISHAY 威世
描述:0603 100Ω ±5% 0.25W1/4W ±200ppm/℃
