CRCW060391R0JNEA

CRCW060391R0JNEA图片1
CRCW060391R0JNEA概述

0603 91Ω ±5% 0.1W1/10W ±200ppm/℃

CRCW Series 0603 0.1 W 91 Ohm ±5 % ±200 ppm/K SMT Thick Film Chip Resistor


立创商城:
91Ω ±5% 100mW


艾睿:
This is a CRCW060391R0JNEA fixed single surface-mount resistor from Vishay. This product has a resistance value of 91 Ohm. This part has a power rating of 0.1 1/10 W. Its temperature coefficient is ±200 ppm/°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This part has an operating temperature of -55 to 155 °C. This device utilizes thick film technology. This product is 1.55 mm long, 0.45 mm tall and 0.85 mm deep. It has a tolerance of 5%.


CRCW060391R0JNEA中文资料参数规格
技术参数

额定功率 0.1 W

产品系列 Vishay_Dale

电阻 91 Ω

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 1608

封装 0603

外形尺寸

长度 1.6 mm

宽度 0.8 mm

高度 0.45 mm

封装公制 1608

封装 0603

物理参数

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准

含铅标准 Lead Free

数据手册

CRCW060391R0JNEA引脚图与封装图

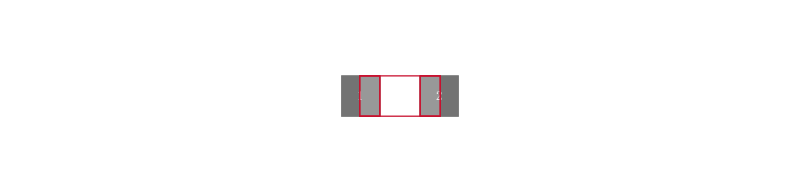

CRCW060391R0JNEA引脚图

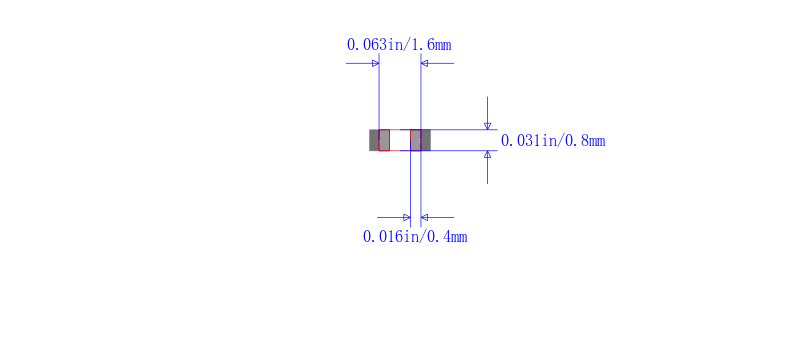

CRCW060391R0JNEA封装图
CRCW060391R0JNEA封装焊盘图
