CRCW20101R50JNEF

CRCW20101R50JNEF概述

厚膜电阻, 1.5Ω, 500mW, 5%

CRCW Series 2010 0.75 W 1.5 O ±5% ±200 ppm/K SMT Thick Film Chip Resistor


立创商城:
1.5Ω ±5% 750mW


e络盟:
厚膜电阻, 1.5Ω, 500mW, 5%


艾睿:
The CRCW20101R50JNEF fixed single surface-mount resistor from Vishay makes it easy to add resistors to your circuit board. This dependable part has a power rating of 0.75 3/4 W. This product has a resistance value of 1.5 Ohm. Its temperature coefficient is ±200 ppm/°C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 5 mm long, 0.6 mm tall and 2.5 mm deep. This device is made with thick film technology. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 5%.


CRCW20101R50JNEF中文资料参数规格
技术参数

额定功率 0.75 W

产品系列 Vishay_Dale

电阻 1.5 Ω

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

额定电压 400 V

封装参数

封装公制 5025

封装 2010

外形尺寸

长度 5 mm

宽度 2.5 mm

高度 0.6 mm

封装公制 5025

封装 2010

物理参数

温度系数 ±200 ppm/K

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准

含铅标准 Lead Free

数据手册

CRCW20101R50JNEF引脚图与封装图
CRCW20101R50JNEF引脚图

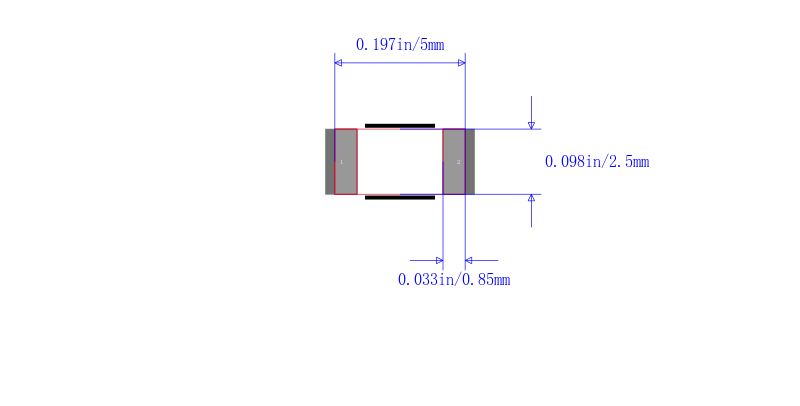

CRCW20101R50JNEF封装图

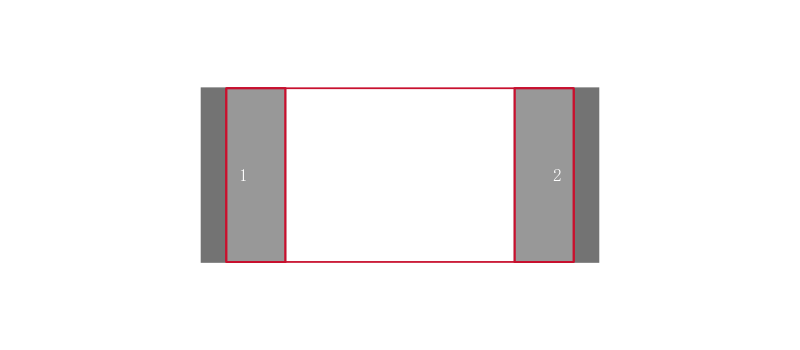

CRCW20101R50JNEF封装焊盘图
