CRCW20104K75FKEF

CRCW20104K75FKEF图片1
CRCW20104K75FKEF图片2
CRCW20104K75FKEF概述

2010 4.75kΩ ±1% 3/4W ±100ppm/℃

RES SMD 4.75K OHM 1% 3/4W 2010


艾睿:
The CRCW20104K75FKEF fixed single surface-mount resistor from Vishay makes it easy to add resistors to your circuit board. This part has a power rating of 0.75 3/4 W. This product has a resistance value of 4.75K Ohm. Its temperature coefficient is ±100 ppm/°C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 5 mm long, 0.6 mm tall and 2.5 mm deep. It has a tolerance of 1%. This part has an operating temperature of -55 to 155 °C. This device is made with thick film technology.


立创商城:
CRCW20104K75FKEF


Verical:
Res Thick Film 2010 4.75K Ohm 1% 0.75W3/4W ±100ppm/C Pad SMD Automotive T/R


CRCW20104K75FKEF中文资料参数规格
技术参数

额定电压DC 400 V

额定功率 0.75 W

产品系列 Vishay_Dale

电阻 4750 Ω

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 5025

封装 2010

外形尺寸

长度 5.00 mm

宽度 2.50 mm

高度 0.6 mm

封装公制 5025

封装 2010

物理参数

温度系数 ±100 ppm/℃

其他

包装方式 Tape & Reel TR

符合标准

RoHS标准

含铅标准 Lead Free

数据手册

CRCW20104K75FKEF引脚图与封装图

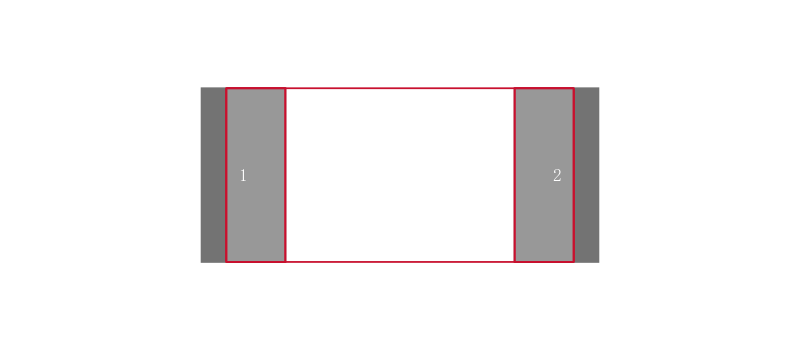

CRCW20104K75FKEF引脚图

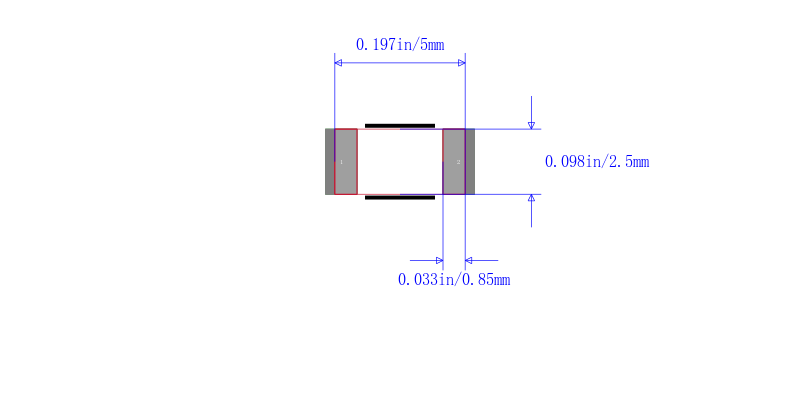

CRCW20104K75FKEF封装图
CRCW20104K75FKEF封装焊盘图
在线购买CRCW20104K75FKEF
型号: CRCW20104K75FKEF
制造商: VISHAY 威世
描述:2010 4.75kΩ ±1% 3/4W ±100ppm/℃
替代型号CRCW20104K75FKEF
型号/品牌 代替类型 替代型号对比

CRCW20104K75FKEF

VISHAY 威世

当前型号

当前型号

RK73H2HTTE4751F

KOA Speer

功能相似

CRCW20104K75FKEF和RK73H2HTTE4751F的区别

NRC50F4751TRF

NIC

功能相似

CRCW20104K75FKEF和NRC50F4751TRF的区别
