CRCW20104K42FKEF

CRCW20104K42FKEF图片1
CRCW20104K42FKEF概述

厚膜电阻 系列:CRCW

RES SMD 4.42K OHM 1% 3/4W 2010


立创商城:
4.42kΩ ±1% 750mW


e络盟:
厚膜电阻 系列:CRCW


艾睿:
The CRCW20104K42FKEF fixed single surface-mount resistor from Vishay makes it easy to add resistors to your circuit board. This part has a power rating of 0.75 3/4 W. This product has a resistance value of 4.42K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 5 mm long, 0.6 mm tall and 2.5 mm deep. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%. This device utilizes thick film technology.


CRCW20104K42FKEF中文资料参数规格
技术参数

额定功率 0.75 W

产品系列 Vishay_Dale

电阻 4.42 KΩ

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

封装公制 5025

封装 2010

外形尺寸

长度 5 mm

宽度 2.5 mm

高度 0.6 mm

封装公制 5025

封装 2010

物理参数

温度系数 ±100 ppm/℃

其他

包装方式 Tape & Reel TR

符合标准

RoHS标准

数据手册

CRCW20104K42FKEF引脚图与封装图

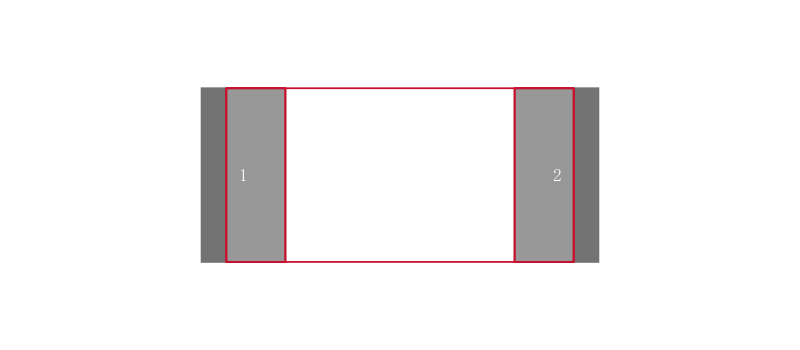

CRCW20104K42FKEF引脚图

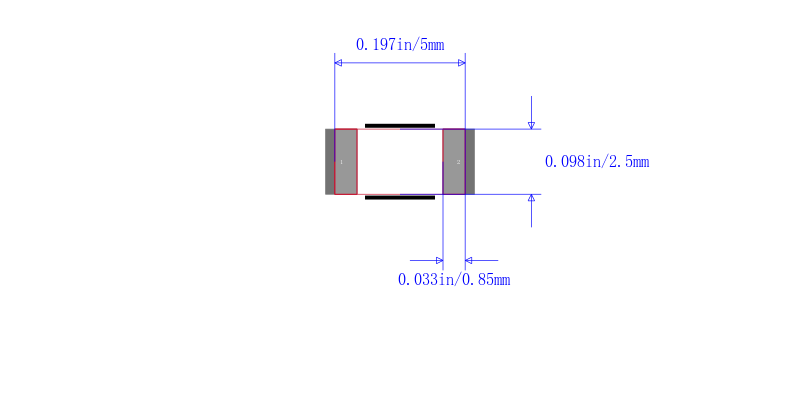

CRCW20104K42FKEF封装图
CRCW20104K42FKEF封装焊盘图
在线购买CRCW20104K42FKEF
型号: CRCW20104K42FKEF
制造商: VISHAY 威世
描述:厚膜电阻 系列:CRCW
