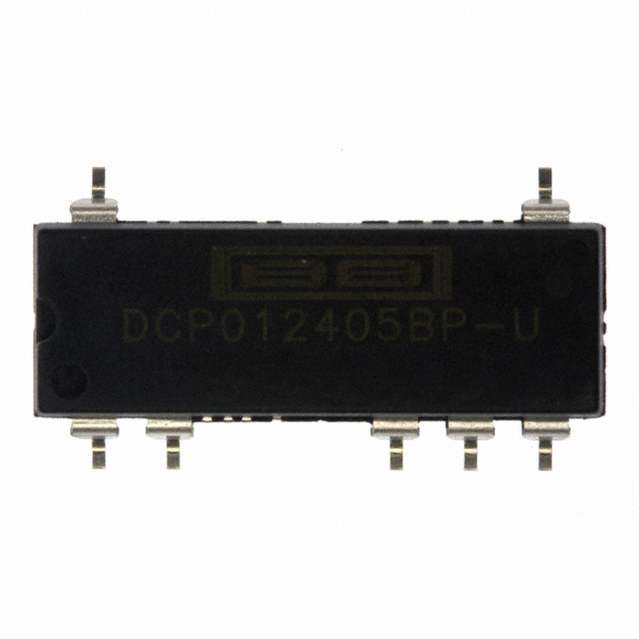

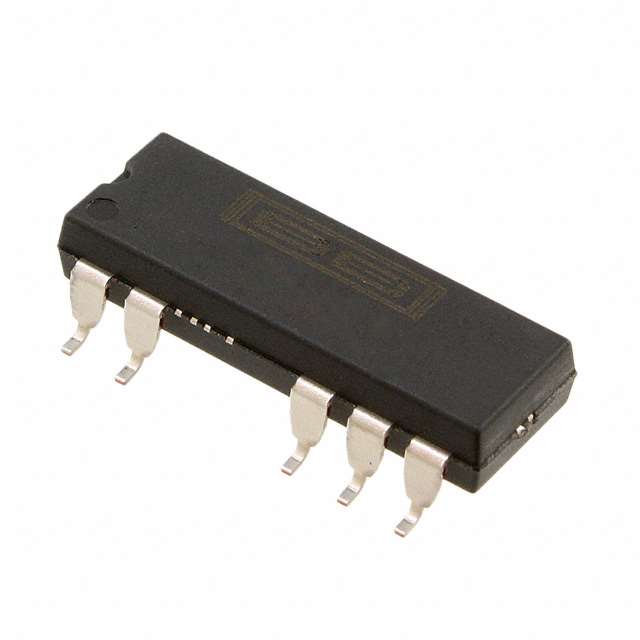

DCP012405BP-U

TEXAS INSTRUMENTS  DCP012405BP-U  直流/直流转换器 隔离式板载, 表面安装DIP, 固定, 表面安装设备, 1 W, 5 V, 200 mA

The is an isolated unregulated DC/DC Converter Module requiring a minimum of external components and including on-chip device protection. The device provides extra features such as output disable and synchronization of switching frequencies. This combination of features and small size makes the device suitable for a wide range of applications and is an easy-to-use solution in applications requiring signal path isolation. It offers up to 1W of isolated, unregulated output power from a 24V input source with a typical efficiency of up to 85%. This efficiency is achieved through highly integrated technology and the implementation of a custom power stage and control device. The circuit design uses an advanced BiCMOS and DMOS process.

.

Device-to-device synchronization

.

EN55022 Class-B EMC performance

.

1kV Operational isolation

This product has operational isolation and is intended for signal isolation only. It should not be used as a part of a safety isolation circuit requiring reinforced isolation.
