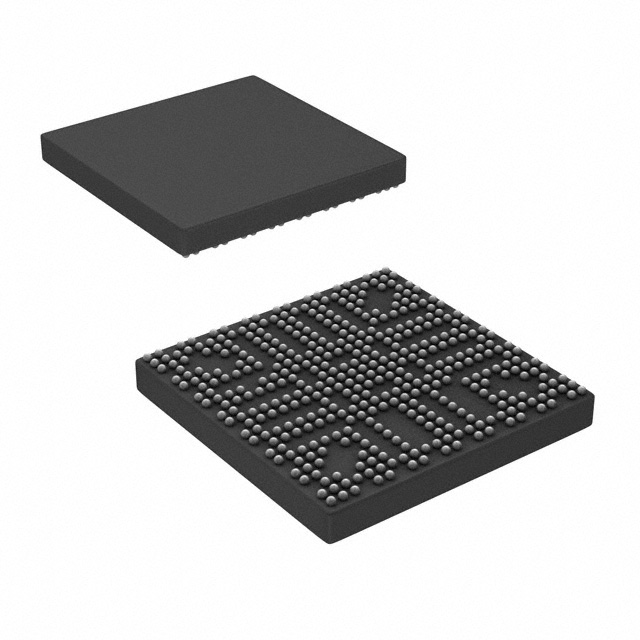

TEXAS INSTRUMENTS DM3730CUS 受限产品, 芯片, 数字媒体处理器, 423FCBGA
Description
The DM37x generation of high-performance, digital media processors are based on the enhanced device architecture and are integrated on "s advanced 45-nm process technology. This architecture is designed to provide best in class ARM and Graphics performance while delivering low power consumption. This balance of performance and power allow the device to support the following example applications:
• Portable Data Terminals
• Navigation
• Auto Infotainment
• Gaming
• Medical Imaging
• Home Automation
• Human Interface
• Industrial Control
• Test and Measurement
• Single board Computers
频率 800 MHz
针脚数 423
时钟频率 660 MHz
RAM大小 64 KB
位数 32
UART数量 4
输入/输出数 188 Input
工作温度Max 90 ℃
工作温度Min 0 ℃
电源电压Max 1.2 V
电源电压Min 1.08 V
安装方式 Surface Mount
引脚数 423
封装 FCBGA-423
高度 1.03 mm
封装 FCBGA-423
工作温度 0℃ ~ 90℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 5A992.c
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DM3730CUS TI 德州仪器 | 当前型号 | 当前型号 |
DM3725CUS100 德州仪器 | 完全替代 | DM3730CUS和DM3725CUS100的区别 |
DM3730CUS100 德州仪器 | 类似代替 | DM3730CUS和DM3730CUS100的区别 |
AM3715CUS 德州仪器 | 类似代替 | DM3730CUS和AM3715CUS的区别 |
