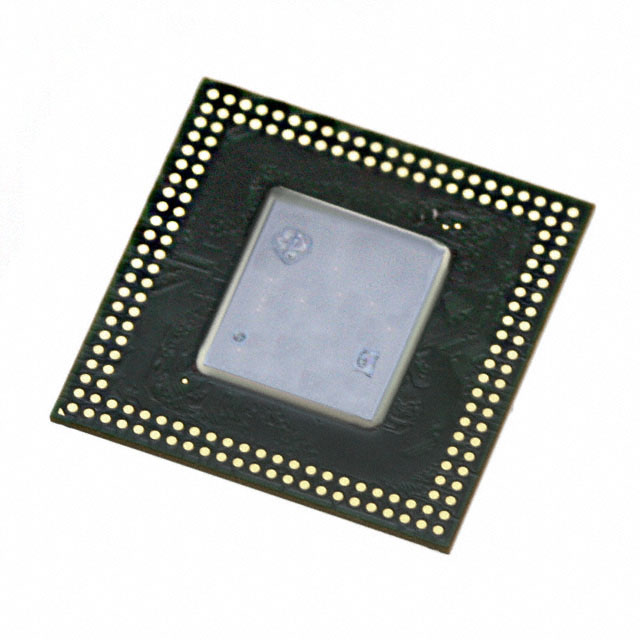

DM3725CBP100

DM3725CBP100图片1
DM3725CBP100图片2
DM3725CBP100图片3
DM3725CBP100图片4
DM3725CBP100图片5
DM3725CBP100图片6
DM3725CBP100图片7
DM3725CBP100图片8
DM3725CBP100图片9
DM3725CBP100图片10
DM3725CBP100概述

应用处理器 Applications Processor

Description

The DM37x generation of high-performance, digital media processors are based on the enhanced device architecture and are integrated on "s advanced 45-nm process technology. This architecture is designed to provide best in class ARM and Graphics performance while delivering low power consumption. This balance of performance and power allow the device to support the following example applications:

• Portable Data Terminals

• Navigation

• Auto Infotainment

• Gaming

• Medical Imaging

• Home Automation

• Human Interface

• Industrial Control

• Test and Measurement

• Single board Computers

DM3725CBP100中文资料参数规格
技术参数

时钟频率 100 MHz

RAM大小 64 KB

UART数量 4

工作温度Max 90 ℃

工作温度Min 0 ℃

电源电压Max 1.2 V

电源电压Min 1.08 V

封装参数

安装方式 Surface Mount

引脚数 515

封装 FCBGA-515

外形尺寸

封装 FCBGA-515

物理参数

工作温度 0℃ ~ 90℃

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 5A992.c

香港进出口证 NLR

数据手册

DM3725CBP100引脚图与封装图
DM3725CBP100引脚图
在线购买DM3725CBP100
型号: DM3725CBP100
制造商: TI 德州仪器
描述:应用处理器 Applications Processor
替代型号DM3725CBP100
型号/品牌 代替类型 替代型号对比

DM3725CBP100

TI 德州仪器

当前型号

当前型号

DM3730CBPD100

德州仪器

完全替代

DM3725CBP100和DM3730CBPD100的区别

DM3730CBP

德州仪器

类似代替

DM3725CBP100和DM3730CBP的区别

DM3730CBP100

德州仪器

类似代替

DM3725CBP100和DM3730CBP100的区别
