瞬动开关 Snap Action Switch

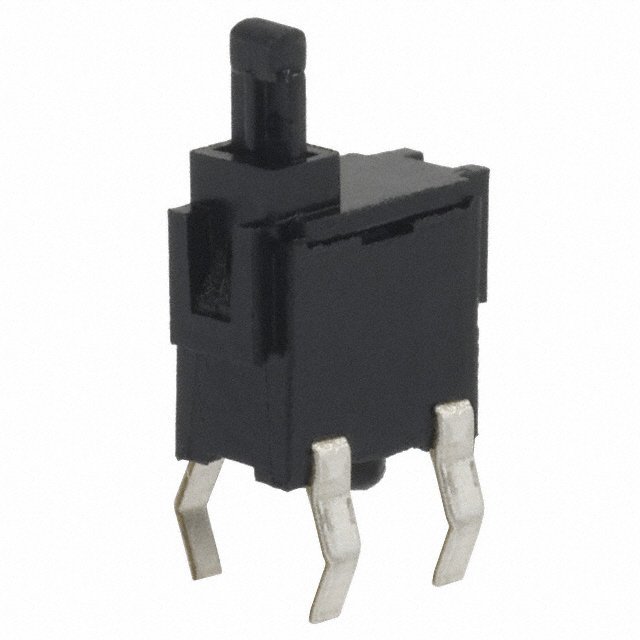

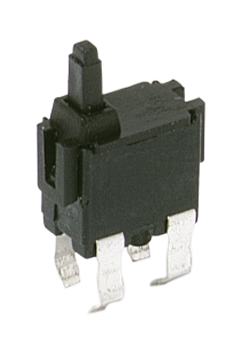

By detecting changes in your environment, this micro mini thru-hole detector switch from C&K Components can be used in a wide array of applications. This device has a maximum current rating of 0.1 A @ 30VDC. This plunger actuator is 2.8 mm long. It has a SPST configuration. This switch detector has an operating temperature range of -20 °C to 70 °C. It has 2 terminals. The DDS001 switch detector has a PC pin termination style. The maximum DC voltage rating is 30 VDC. This product is 6.3 mm long, 8.7 mm tall and 3.3 mm deep.
额定电压DC 30 V
额定电流 100mA DC
绝缘电阻 100 MΩ
方向 Vertical
触点类型 SPST
接触电阻 150 mΩ
触点额定电流 100 mA
额定电流Max 0.1A @30VDC
工作温度Max 70 ℃
工作温度Min -20 ℃
额定电压DC Max 30 V
接触电阻Max 150 mΩ
安装方式 Through Hole
封装 散装
长度 6.3 mm
宽度 3.3 mm
高度 8.7 mm
封装 散装
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
