Module DC-DC 1Out 14V 0.07A 1W 4Pin SIP

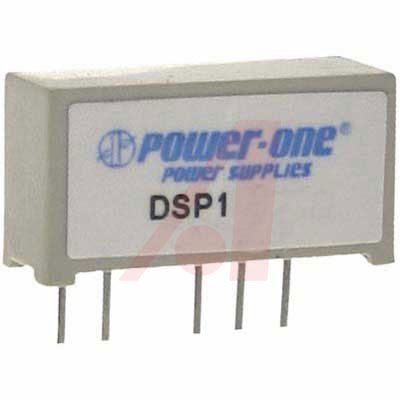

DSP1 Single-Output DC-DC Series Converter
* Up to 1 W unregulated output power
* Single in line package
* Four-terminal operation
* Efficiencies to 75%
* 350 kHz fixed frequency operation
* 700 V isolation
* 100% Dynamic Load Burn-In
* CE Marking
* ISO 9000 Approved Quality
* Stocked By Allied
* Industry Standard Footprints and Pinouts
* More Than 100 Models
得捷:
DC DC CONVERTER 14V 1W
艾睿:
Provide the ability to switch between voltages by using this step up DSP1N5S14 DC to DC converter and switching regulator module. It has a voltage of 14 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C.
Allied Electronics:
Converter; DC-DC; 14V@0.07A; 4.5-5.5V In; Enclosed; Thru-Hole; Telecom; DSP1 Series
Chip1Stop:
Module DC-DC 1-OUT 14V 0.07A 1W 4-Pin SIP
Electro Sonic:
Module DC-DC 1-OUT 14V 0.07A 1W 4-Pin SIP
