D5B-8011

D5B-8011图片1
D5B-8011图片2
D5B-8011概述

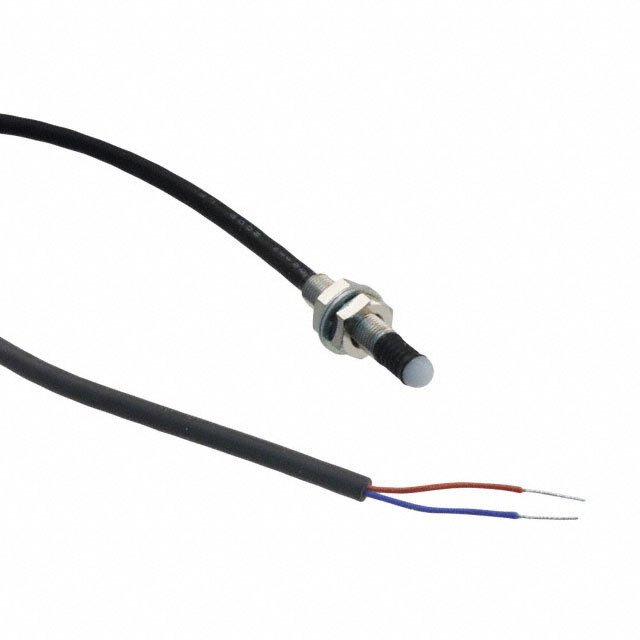

Switch Limit N.C. SPST Hemispheric Plunger Cable 0.03A 30VDC 0.98N Linear Panel Mount

is manufactured by Automation and is categorized in the Snap Action, Limit Switches category. D5B-8011 is described as SWITCH SNAP ACTION SPST-NC 30MA. Perfect Parts is a supplier of Switches and other Electromechanicals.


得捷:
SWITCH SNAP ACT SPST-NC 30MA 30V


D5B-8011中文资料参数规格
技术参数

额定电压DC 30 V

额定电流 30mA DC

额定电流Max 0.03A @30VDC

工作温度Max 70 ℃

工作温度Min -10 ℃

额定电压DC Max 30 V

接触电阻Max 700 mΩ

封装参数

安装方式 Panel

外形尺寸

高度 28 mm

物理参数

工作温度 -10℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买D5B-8011
型号: D5B-8011
制造商: Omron 欧姆龙
描述:Switch Limit N.C. SPST Hemispheric Plunger Cable 0.03A 30VDC 0.98N Linear Panel Mount
