DM9161AEP 托盘
General Description
The DM9161A is a physical layer, single-chip, and low power transceiver for 100BASE-TX and 10BASE-T operations. On the media side, it provides a direct interface either to Unshielded Twisted Pair Category 5 Cable UTP5 for 100BASE-TX Fast Ethernet, or UTP5/UTP3 Cable for 10BASE-T Ethernet. Through the Media Independent Interface MII, the DM9161A connects to the Medium Access Control MAC layer, ensuring a high inter operability from different vendors.
Features
Fully comply with IEEE 802.3 / IEEE 802.3u 10Base-T/100Base-TX, ANSI X3T12 TP-PMD 1995 standard
Support MDI/MDI-X auto crossover function Auto-MDI
Support Auto-Negotiation function, compliant with IEEE 802.3u
Fully integrated Physical layer transceiver On-chip filtering with direct interface to magnetic transformer
Selectable repeater or node mode
Selectable MII or RMII Reduced MII mode for 100Base-TX and 10Base-TX. Selectable MII or GPSI
7-Wired mode for 10Base-T
Selectable full-duplex or half-duplex operation
MII management interface with maskable interrupt output capability
Provide Loopback mode for easy system diagnostics
LED status outputs indicate Link/ Activity, Speed10/100 and Full-duplex/Collision. Support Dual-LED optional control
Single low power Supply of 3.3V with an advanced CMOS technology
Very Low Power consumption modes:
●Power Reduced mode cable detection
●Power Down mode
●Selectable TX drivers for 1:1 or 1.25:1 transformers for additional power reduction. 1: 1 transformers only when HP Auto-MDIX Enable .
Compatible with 3.3V and 5.0V tolerant I/Os

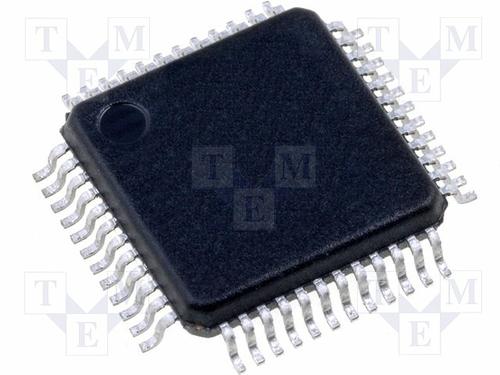

48-pin LQFP
