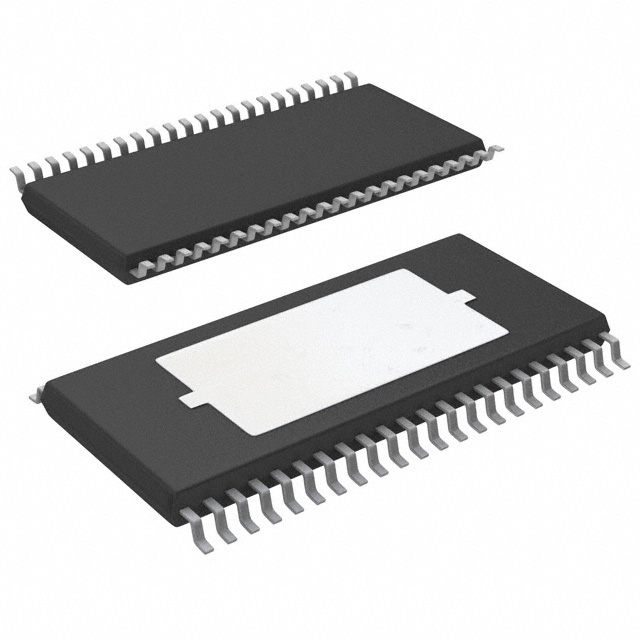

DRV8412DDWR

双路全桥式PWM电动机驱动器 Dual Full Bridge PWM Motor Driver

Description

The DRV841x2 are high-performance, integrated dual full-bridge motor driver with an advanced protection system.

Because of the low RDSon of the H-Bridge MOSFETs and intelligent gate drive design, the efficiency of these motor drivers can be up to 97%. This high efficiency enables the use of smaller power supplies and heatsinks, and the devices are good candidates for energy-efficient applications.

Features

• High-Efficiency Power Stage up to 97% With Low RDSon MOSFETs 110 mΩ at TJ = 25°C

• Operating Supply Voltage up to 52 V

• DRV8412 Power Pad Down: up to 2 × 3-A Continuous Output Current 2 × 6-A Peak in Dual Full-Bridge Mode or 6-A Continuous Current in Parallel Mode 12-A Peak

• DRV8432 Power Pad Up: up to 2 × 7-A Continuous Output Current 2 × 12-A Peak in Dual Full-Bridge Mode or 14-A Continuous Current in Parallel Mode 24-A Peak

• PWM Operating Frequency up to 500 kHz

• Integrated Self-Protection Circuits Including Undervoltage, Overtemperature, Overload, and Short Circuit

• Programmable Cycle-by-Cycle Current Limit Protection

• Independent Supply and Ground Pins for Each Half Bridge

• Intelligent Gate Drive and Cross Conduction Prevention

• No External Snubber or Schottky Diode is Required

Applications

• Brushed DC and Stepper Motors

• Three-Phase Permanent Magnet Synchronous Motors

• Robotic and Haptic Control System

• Actuators and Pumps

• Precision Instruments

• TEC Drivers

• LED Lighting Drivers
