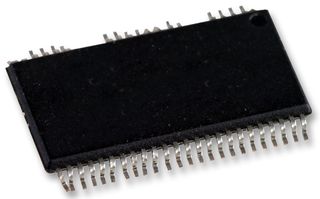

TEXAS INSTRUMENTS DRV8821DCA 芯片, 步进电机控制器, 48HTSSOP
步进驱动器,带 FET,Texas Instruments
Texas Instruments 的一系列专用步进电动机驱动器 IC。
得捷:
IC MTR DRV BIPOLR 8-32V 48HTSSOP
立创商城:
DRV8821DCA
德州仪器TI:
32-V, 1.5-A dual bipolar stepper motor driver with current regulation and 1/8 microstepping
欧时:
### 步进驱动器,带 FET,Texas InstrumentsTexas Instruments 的一系列专用步进电动机驱动器 IC。### 电动机控制器和驱动器,Texas Instruments
贸泽:
马达/运动/点火控制器和驱动器 Dual Stepper Motor Controller/Driver
e络盟:
电机驱动器/控制器, 步进, 8V至32V电源, 0.6 Ohm RDS, 1.5 A/4路输出, HTSSOP-48
艾睿:
Looking to make your linear actuators and hydraulic pumps better? Implement this bipolar stepper DRV8821DCA stepper motor driver manufactured by Texas Instruments. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device has a minimum operating supply voltage of 8 V and a maximum of 32 V. This motor controller has a minimum operating temperature of 0 °C and a maximum of 70 °C.
安富利:
Stepper Motor Driver 48-Pin HTSSOP EP Tube
Chip1Stop:
Bipolar Stepper Motor Driver 48-Pin HTSSOP EP Tube
Verical:
Bipolar Stepper Motor Driver 48-Pin HTSSOP EP Tube
Newark:
# TEXAS INSTRUMENTS DRV8821DCA Motor Driver/Controller, Stepper, 8V to 32V supply, 0.6 Ohm RDS, 1.5 A/4 Outputs, HTSSOP-48
电源电压DC 8.00V min
输出接口数 8
输出电流 1.5 A
针脚数 48
漏源极电阻 550 mΩ
开关频率 50 kHz
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 8V ~ 32V
电源电压Max 32 V
电源电压Min 8 V
安装方式 Surface Mount
引脚数 48
封装 HTSSOP-48
长度 12.6 mm
宽度 6.2 mm
高度 1.05 mm
封装 HTSSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DRV8821DCA TI 德州仪器 | 当前型号 | 当前型号 |
TMC2041-LA Trinamic Motion Control | 功能相似 | DRV8821DCA和TMC2041-LA的区别 |
