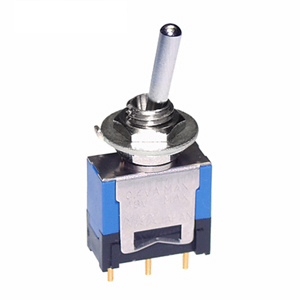

NKK SWITCHES D22012P 拨动开关, D2系列, 不发光, SPDT, 开-开, 面板, 100 mA
The is a single-pole double-throw SPDT PCB-mount miniature Toggle Switch with gold-plated brass straight PC terminals and ON-NONE-ON function. The series D2 toggle switch has brass with chrome plating toggle/lever, UL94V-0 polybutylene terephthalate PBT housing and brass with nickel plating bushing. Maximized voltage capability of 48V allows use in medium source applications and increases operating life.
- .
- 50mR Maximum contact resistance
- .
- 1000MR at 500VDC Minimum insulation resistance
- .
- 100000 operations Minimum mechanical life
- .
- -10 to +70°C Operating temperature range
触点电镀 Gold
绝缘电阻 1000 MΩ
排数 1
触点类型 SPDT
易燃性等级 UL 94 V-0
额定电流Max 0.1A @48VAC, 48VDC
工作温度Max 70 ℃
工作温度Min -10 ℃
接触电阻Max 50 mΩ
安装方式 Through Hole
长度 14.7 mm
宽度 7.3 mm
高度 31.6 mm
触点材质 Phosphor Bronze
产品生命周期 50000 Cycles
制造应用 工业, Industrial
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
