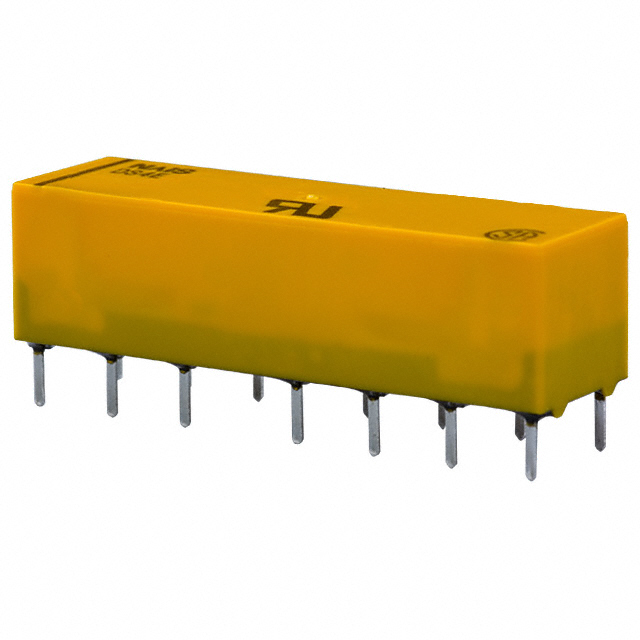

Signal Relay 5VDC 2A 4PDT 35.24mm 9.9mm 9.9mm THT
通用 继电器 4PDT（4 Form C） 通孔
得捷:
RELAY GEN PURPOSE 4PDT 2A 5VDC
贸泽:
Low Signal Relays - PCB 4 Form C, 5VDC 4 Form C 400mW Type1
艾睿:
Signal Relay 5VDC 2A 4PDT35.24x9.9x9.9mm THT
Chip1Stop:
Electromechanical Relay 4PDT 2A 5VDC 139Ohm Through Hole
Verical:
Electromechanical Relay 5VDC 139Ohm 2A 4PDT 35.24x9.9x9.9mm THT Signal Relay
Online Components:
Electromechanical Relay 5VDC 139Ohm 2A 4PDT 35.24x9.9x9.9mm THT Signal Relay
Electro Sonic:
Electromechanical Relay 5VDC 139Ohm 2A 4PDT 35.24x9.9x9.9mm THT Signal Relay
Win Source:
General Purpose Relay 4PDT 4 Form C Through Hole
额定电压DC 220 V
额定电压AC 250 V
绝缘电阻 100 MΩ
触点额定电流 2 A
线圈电压 5 VDC
线圈电流 35.97 mA
线圈电阻 139 Ω
额定电流Max 2 A
线圈电压DC 5 V
线圈功率 180 mW
额定功率Max 60W, 125VA
开关电流Max 2 A
工作温度Max 70 ℃
工作温度Min -40 ℃
额定电压DC Max 220 V
额定电压AC Max 250 V
接触电阻Max 50 mΩ
安装方式 Through Hole
引脚数 14
封装 DIP
长度 35.24 mm
宽度 9.9 mm
高度 9.9 mm
封装 DIP
触点材质 Silver, Gold Clad
工作温度 -40℃ ~ 70℃
产品生命周期 Obsolete
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
