MAXIM INTEGRATED PRODUCTS DS1233AZ-10+T&R 芯片, 微处理器监控器, 5.5V, SOT-223-4
The DS1233AZ-10+T&R is a 3.3V EconoReset in 4 pin SOT-223 package. This EconoReset monitors two vital conditions for a microprocessor such as power supply and external override. A precision temperature-compensated reference and comparator circuit are used to monitor the status of the power supply VCC. When an out of tolerance condition is detected, an internal power-fail signal forces reset to the active state. When VCC returns to an in-tolerance condition, the reset signal is kept in the active state for approximately 350ms to allow the power supply and processor to stabilize. The second function of the device is pushbutton reset control. It debounces a pushbutton closure and will generate a 350ms reset pulse upon release.
电源电压DC 1.20V min
输出电压 ≤3.30 V
针脚数 4
阈值电压 2.88 V
输出电流Max 8 mA
复位电压Min 2.8 V
复位电压Max 2.97 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 5 V
电源电压Max 5.5 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 4

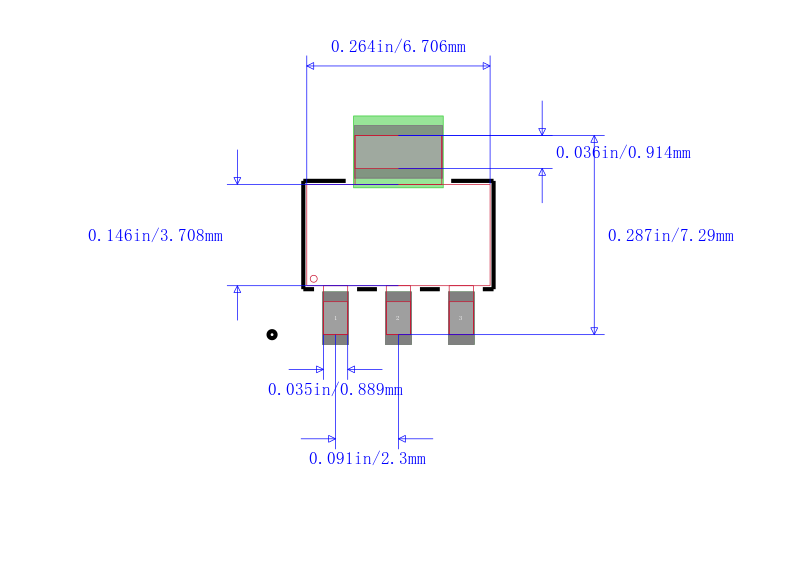

封装 TO-261-4
宽度 3.5 mm
封装 TO-261-4
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 System Monitoring, 系统监控
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DS1233AZ-10+T&R Maxim Integrated 美信 | 当前型号 | 当前型号 |
DS1233AZ-10/T&R 美信 | 完全替代 | DS1233AZ-10+T&R和DS1233AZ-10/T&R的区别 |
DS1233AZ-10+ 美信 | 类似代替 | DS1233AZ-10+T&R和DS1233AZ-10+的区别 |
DS1233AZ-10 美信 | 类似代替 | DS1233AZ-10+T&R和DS1233AZ-10的区别 |
