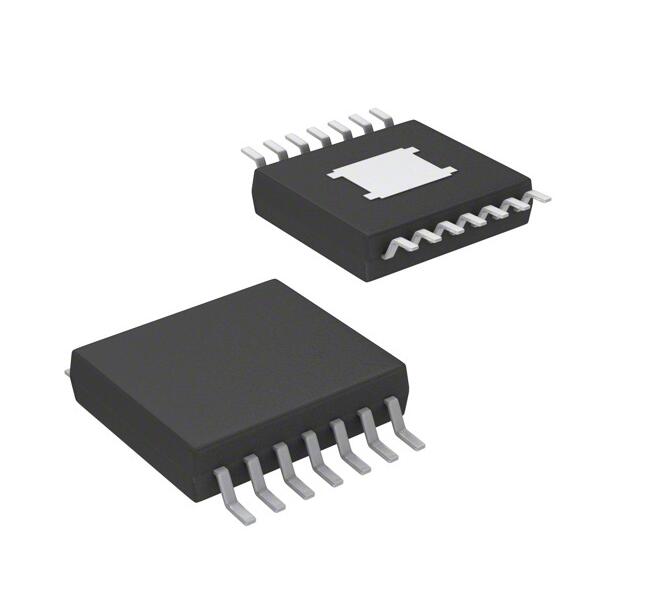

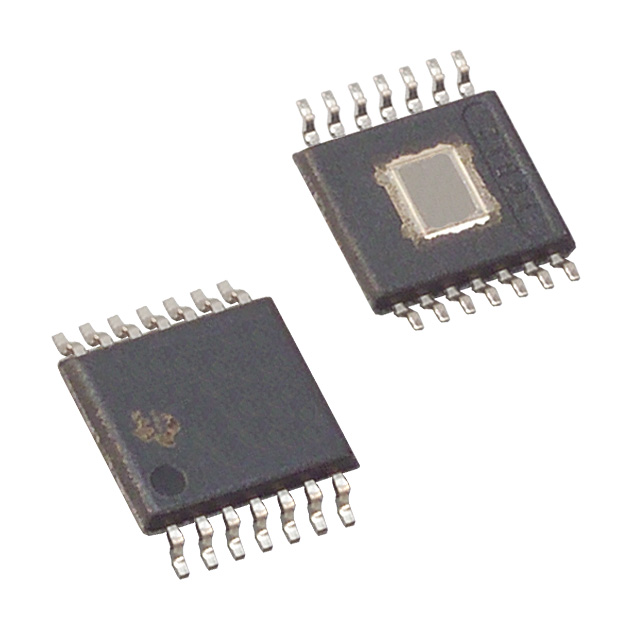

TEXAS INSTRUMENTS DRV104PWPR 芯片, 螺线管驱动器
The is a DMOS high-side Power Switch employs a pulse-width modulated PWM output. Its rugged design is optimized for driving electromechanical devices such as valves, solenoids, relays, actuators and positioners. It is also ideal for driving thermal devices such as heaters, coolers and lamps. PWM operation conserves power and reduces heat rise, resulting in higher reliability. In addition, adjustable PWM allows fine control of the power delivered to the load. Time from dc-to-PWM output and oscillator frequency are externally adjustable. Separate supply pins for the circuit and driver transistor allow the output to operate on a different supply than the rest of the circuit. This PWM High-Side Driver can be set to provide a strong initial solenoid closure, automatically switching to a soft hold mode for power savings. The duty cycle can be controlled by a resistor, analogue voltage or a digital-to-analogue D/A converter for versatility.
ESD sensitive device, take proper precaution while handling the device.
电源电压DC 8.00V min
输出接口数 1
输出电压 40 V
输出电流 1.2 A
通道数 2
输出电流Max 1.2 A
输出电流Min 1.2 A
下降时间Max 2000 ns
上升时间Max 2000 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 24 V
电源电压Max 32 V
电源电压Min 8 V
安装方式 Surface Mount
引脚数 14

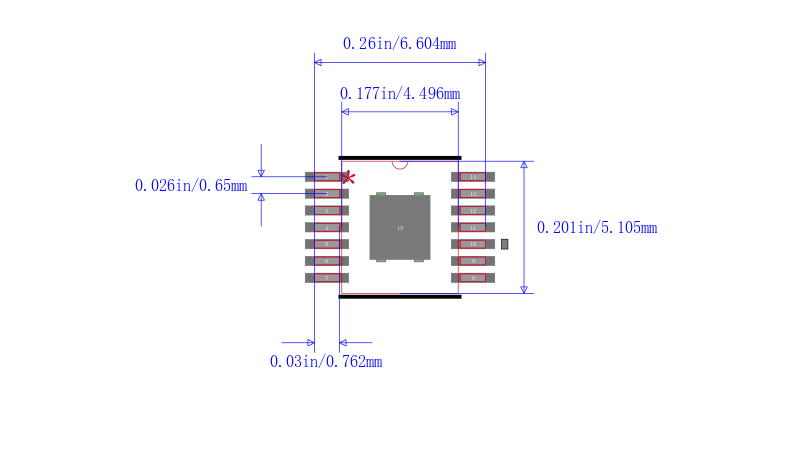

封装 HTSSOP-14
封装 HTSSOP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DRV104PWPR TI 德州仪器 | 当前型号 | 当前型号 |
DRV104PWP 德州仪器 | 完全替代 | DRV104PWPR和DRV104PWP的区别 |
DRV104PWPRG4 德州仪器 | 类似代替 | DRV104PWPR和DRV104PWPRG4的区别 |
DRV104PWPG4 德州仪器 | 类似代替 | DRV104PWPR和DRV104PWPG4的区别 |
