ON Semiconductor### 标准带 S 或 NSV 前缀的制造商部件号具有汽车资格,符合 AEC-Q101 标准。### 数字晶体管,On Semiconductor配备电阻器的双极性晶体管也称为数字晶体管或偏流电阻器的晶体管,包含一个或两个集成电阻器。 单一系列输入电阻器,或两个电阻器的分压器能直接从数字源驱动这些设备。 提供单和双晶体管型号。
单电阻器数字,
### 标准
带 S 或 NSV 前缀的制造商部件号具有汽车资格,符合 AEC-Q101 标准。
得捷:
TRANS PREBIAS NPN 260MW SOT723
立创商城:
NPN Bipolar Digital Transistor BRT
欧时:
### 单电阻器数字晶体管,ON Semiconductor### 标准带 S 或 NSV 前缀的制造商部件号具有汽车资格,符合 AEC-Q101 标准。### 数字晶体管,On Semiconductor配备电阻器的双极性晶体管也称为数字晶体管或偏流电阻器的晶体管,包含一个或两个集成电阻器。 单一系列输入电阻器,或两个电阻器的分压器能直接从数字源驱动这些设备。 提供单和双晶体管型号。
贸泽:
双极晶体管 - 预偏置 100mA 50V BRT NPN
艾睿:
In contrast to traditional transistors, ON Semiconductor&s;s NPN DTC114TM3T5G digital transistor&s;s can be used in a wide variety of digital signal processing circuits. This product&s;s maximum continuous DC collector current is 100 mA, while its minimum DC current gain is 160@5mA@10 V. It has a maximum collector emitter saturation voltage of 0.25@1mA@10mA V. It has a maximum collector emitter voltage of 50 V. Its maximum power dissipation is 600 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. It is made in a single configuration.
Allied Electronics:
DTC114TM3T5G NPN Digi Transistor, 100mA 50V 10 kOhm, Ratio Of None, 3-Pin SOT-723
安富利:
Trans Digital BJT NPN 50V 100mA 3-Pin SOT-723 T/R
Chip1Stop:
Trans Digital BJT NPN 50V 100mA Automotive 3-Pin SOT-723 T/R
Verical:
Trans Digital BJT NPN 50V 100mA Automotive 3-Pin SOT-723 T/R
Newark:
# ON SEMICONDUCTOR DTC114TM3T5G Bipolar Pre-Biased / Digital Transistor, BRT, 50 V, 100 mA, 10 kohm, SOT-723
Win Source:
Digital Transistors BRT NPN Silicon Surface Mount Transistors with Monolithic Bias Resistor Network
额定电压DC 50.0 V
额定电流 100 mA
无卤素状态 Halogen Free
极性 NPN
耗散功率 0.6 W
击穿电压集电极-发射极 50 V
集电极最大允许电流 100mA
最小电流放大倍数hFE 160 @5mA, 10V
最大电流放大倍数hFE 160
额定功率Max 260 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 600 mW
安装方式 Surface Mount
引脚数 3

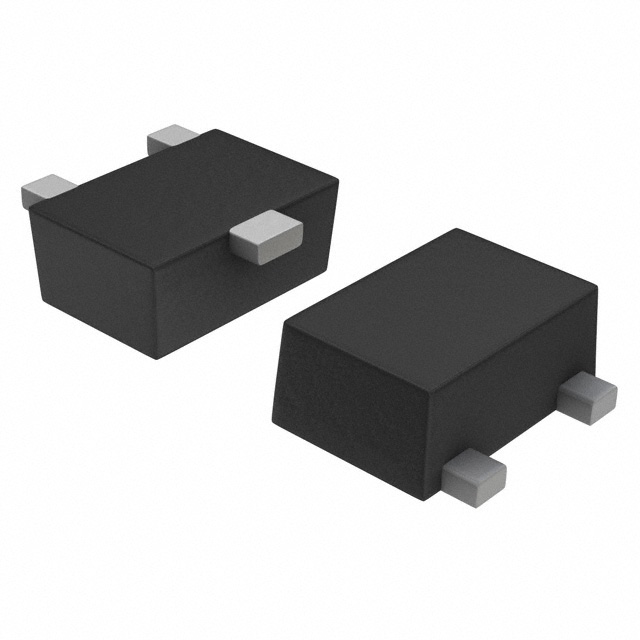

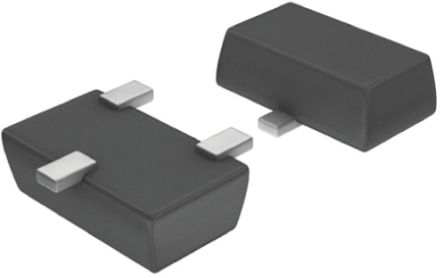

封装 SOT-723-3
长度 1.25 mm
宽度 0.8 mm
高度 0.55 mm
封装 SOT-723-3
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DTC114TM3T5G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
DTC114EM3T5G 安森美 | 类似代替 | DTC114TM3T5G和DTC114EM3T5G的区别 |
DTC114YM3T5G 安森美 | 类似代替 | DTC114TM3T5G和DTC114YM3T5G的区别 |
DDTC114EUA-7-F 美台 | 功能相似 | DTC114TM3T5G和DDTC114EUA-7-F的区别 |
