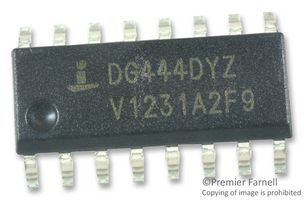

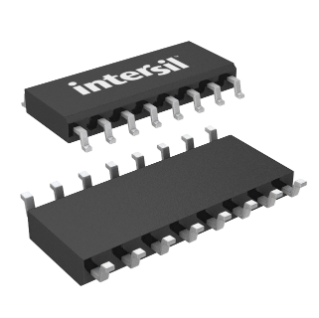

DG444DYZ

INTERSIL  DG444DYZ  模拟开关, 四通道, SPST, 4 放大器, 85 ohm, 5V 至 34V, ± 5V 至 ± 20V, SOIC, 16 引脚

The is a single-pole single-throw SPST monolithic quad CMOS Analog Switch drop-in replacements for the popular DG211 and DG212 series devices. It includes four independent single-pole single-throw SPST analog switches and TTL and CMOS compatible digital inputs. This switch features lower analog ON resistance <85R and faster switch time tON <250ns compared to the DG211 and DG212 charge injection has been reduced, simplifying sample and hold applications. The improvements in this switch series are made possible by using a high voltage silicon-gate process. An epitaxial layer prevents the latch-up associated with older CMOS technologies. The 44V maximum voltage range permits controlling ±20V signals when operating with ±20V power supplies. The four switches are bilateral, equally matched for AC or bidirectional signals. The ON resistance variation with analog signals is quite low over a ±5V analog input range.

.

Low charge injection

.

TTL/CMOS Compatible

.

Single or split supply operation

.

Fast switching action
