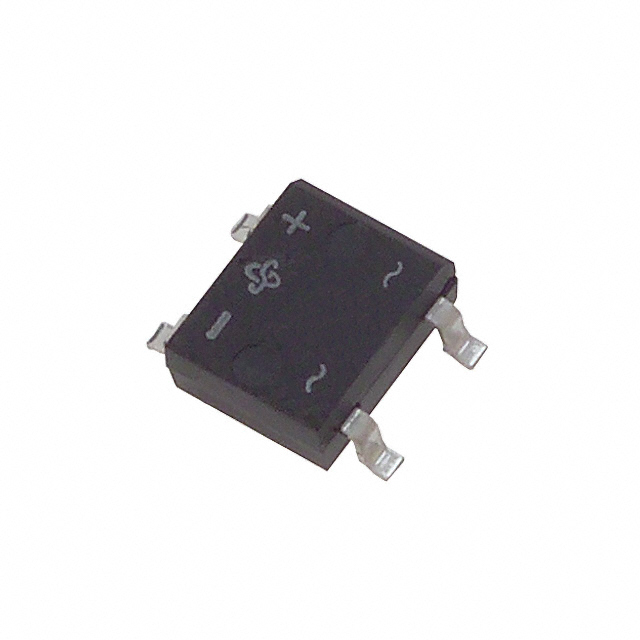

VISHAY DF06SA-E3/77 二极管 桥式整流, 单相, 600 V, 1 A, SMD, 1.1 V, 4 引脚
The is a 4-pin single-phase miniature glass passivated surface-mount Bridge Rectifier Diode with middle surge current capability. It is used in general purpose AC/DC bridge full wave rectification for SMPS, lighting ballast, adapter, battery charger, home appliances, office equipment and telecommunication applications.
针脚数 4
正向电压 1.1 V
正向电流 1 A
最大正向浪涌电流(Ifsm) 30 A
正向电压Max 1.1 V
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 4
封装 SMD-4
长度 8.51 mm
宽度 6.5 mm
高度 3.3 mm
封装 SMD-4
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Consumer Electronics, Lighting, Communications & Networking, Industrial, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
