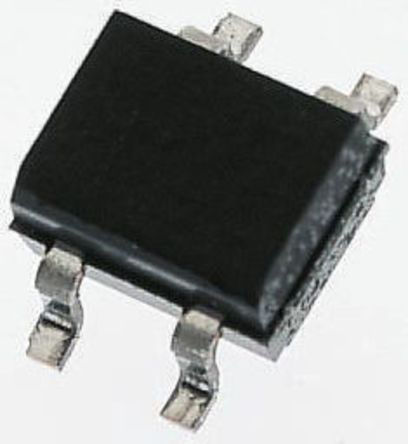

DFxxS 系列,Vishay Semiconductor高浪涌电流容量 低直流反向电流 特别适用于自动化放置 印刷电路板 PCB 回流焊接 ### 认可UL 文件 E54214### 桥式整流器 - Vishay Semiconductor桥式整流器将交流 AC 输入转换为直流 DC 输出,用于全波整流应用。 二极管排列为任一输入极性提供相同的输出极性。 三相全波整流器是桥式电路配置中的六个二极管的排列。 封装设计用于提供最小尺寸、最高可靠性和最大热性能。
FEATURES
• UL recognition, file number E54214
• Ideal for automated placement
• Middle surge current capability
• Meets MSL level 1, per J-STD-020, LF maximum peak of 250 °C
• Solder dip 260 °C, 40 s
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
TYPICAL APPLICATIONS
General purpose use in ac-to-dc bridge full wave rectification for SMPS, lighting ballaster, adapter, battery charger, home appliances, office equipment, and telecommunication applications.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DF08SA-E3/77 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
DF08SA-E3/45 威世 | 完全替代 | DF08SA-E3/77和DF08SA-E3/45的区别 |
