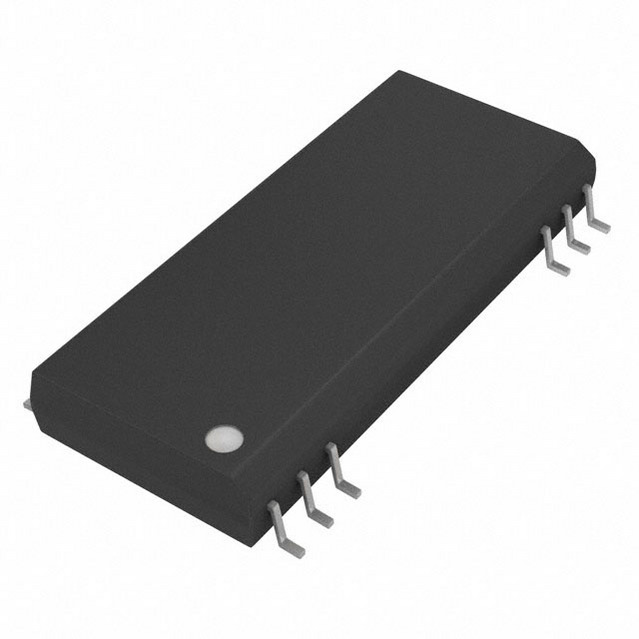

微型， 2W ，隔离非稳压DC / DC转换器 Miniature, 2W, Isolated UNREGULATED DC/DC CONVERTERS
DESCRIPON
The DCP02 series is a family of 2W, isolated, unregulated DC/DC converters. Requiring a minimum of external components and including on-chip device protection, the DCP02 series provides extra features such as output disable and synchronization of switching frequencies.
FEATURES
• Up To 89% Efficiency
• Thermal Protection
• Device-to-Device Synchronization
• SO-28 Power Density of 106W/in36.5W/cm3
• EN55022 Class B EMC Performance
• UL1950 Recognized Component
• JEDEC 14-Pin and SO-28 Packages
APPLICATIONS
• Point-of-Use Power Conversion
• Ground Loop Elimination
• Data Acquisition
• Industrial Control and Instrumentation
• Test Equipment
电源电压DC 12.0 V
额定功率 2 W
输出接口数 2
输入电压DC 10.8V ~ 13.2V
输出电压 12 V
输出电流 83 mA
静态电流 16.0 mA
调节输出数 2
输出功率 2 W
隔离电压 1 kV
开关频率 800 kHz
输入电压Max 13.2 V
输入电压Min 10.8 V
输出电流Max 83mA, 83mA
输出功率Max 2 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 10.8V ~ 13.2V
安装方式 Surface Mount
引脚数 12
封装 SOP-12
长度 17.7 mm
宽度 7.40 mm
高度 2.3 mm
封装 SOP-12
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
DCP021212DU/1K TI 德州仪器 | 当前型号 | 当前型号 |
DCP021212DU 德州仪器 | 完全替代 | DCP021212DU/1K和DCP021212DU的区别 |
