微型， 2W ，隔离非稳压DC / DC转换器 Miniature, 2W, Isolated UNREGULATED DC/DC CONVERTERS
DESCRIPON
The DCP02 series is a family of 2W, isolated, unregulated DC/DC converters. Requiring a minimum of external components and including on-chip device protection, the DCP02 series provides extra features such as output disable and synchronization of switching frequencies.
FEATURES
• Up To 89% Efficiency
• Thermal Protection
• Device-to-Device Synchronization
• SO-28 Power Density of 106W/in36.5W/cm3
• EN55022 Class B EMC Performance
• UL1950 Recognized Component
• JEDEC 14-Pin and SO-28 Packages
APPLICATIONS
• Point-of-Use Power Conversion
• Ground Loop Elimination
• Data Acquisition
• Industrial Control and Instrumentation
• Test Equipment
电源电压DC 5.00 V
额定功率 2 W
输出接口数 1
输入电压DC 4.50V ~ 5.50V
输出电压 5 V
输出电流 400 mA
静态电流 18.0 mA
调节输出数 1
隔离电压 1 kV
开关频率 800 kHz
输入电压Max 5.5 V
输入电压Min 4.5 V
输出电流Max 400 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 4.5V ~ 5.5V

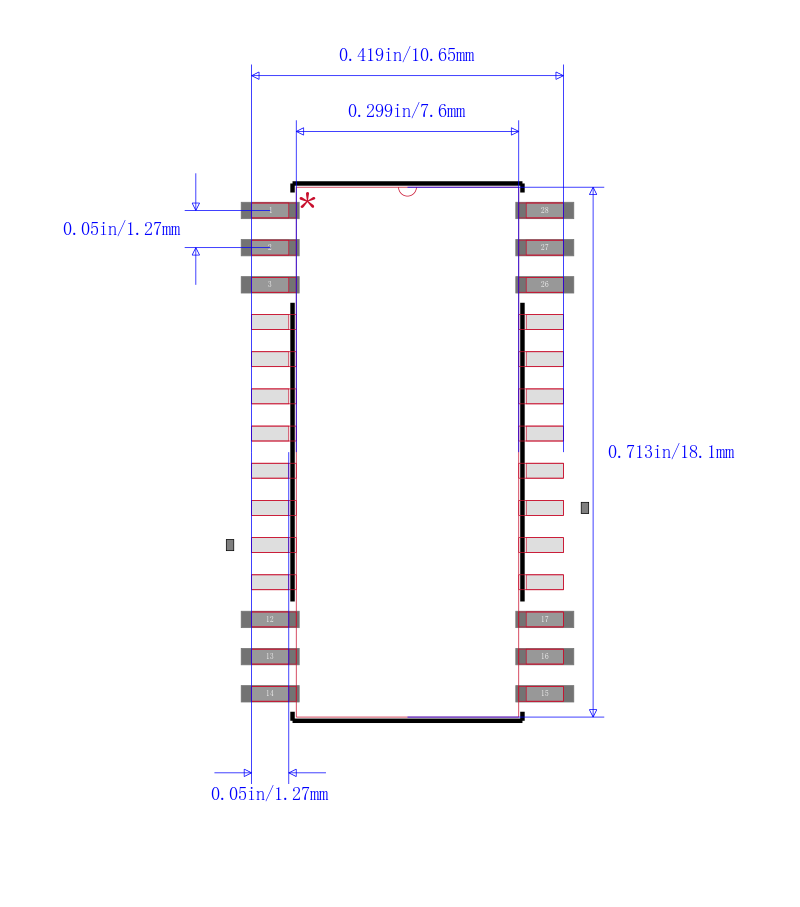

安装方式 Surface Mount
引脚数 28
封装 SOP-12
高度 2.3 mm
封装 SOP-12
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
