Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole
按钮
得捷:
SWITCH PUSHBUTTON SPDT 0.4VA 28V
立创商城:
DB2511P
艾睿:

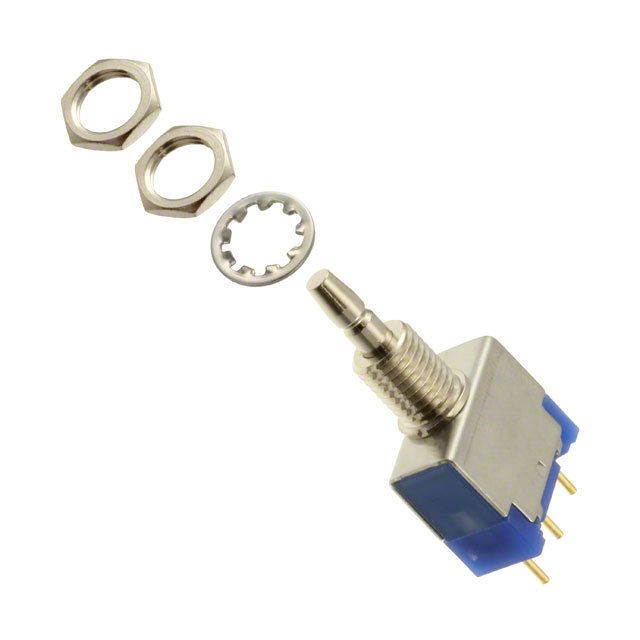

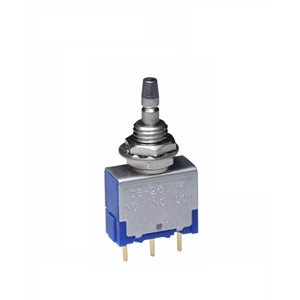

This classic DB2511P push button switch from NKK Switches will do exactly what you need it to do by turning your circuit on and off. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This push switch has a minimum operating temperature of -10 °C and a maximum of 70 °C. The DB2511P push switch has a PC pin termination style. This product is 14.7 mm long, 28.9 mm tall and 8 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.
Allied Electronics:
Light Touch Miniature Pushbuttons
Chip1Stop:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole
Verical:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole
Powell:
Light Touch Miniature Pushbuttons
额定电压DC 28 V
额定电压AC 28 V
额定电流 0.0142 A
排数 1
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 70 ℃
工作温度Min -10 ℃
额定电压 28 VAC
接触电阻Max 50 mΩ
安装方式 PC Board, Panel
封装 -
长度 14.7 mm
宽度 8 mm
高度 28.9 mm
封装 -
触点材质 Copper
工作温度 -10℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
