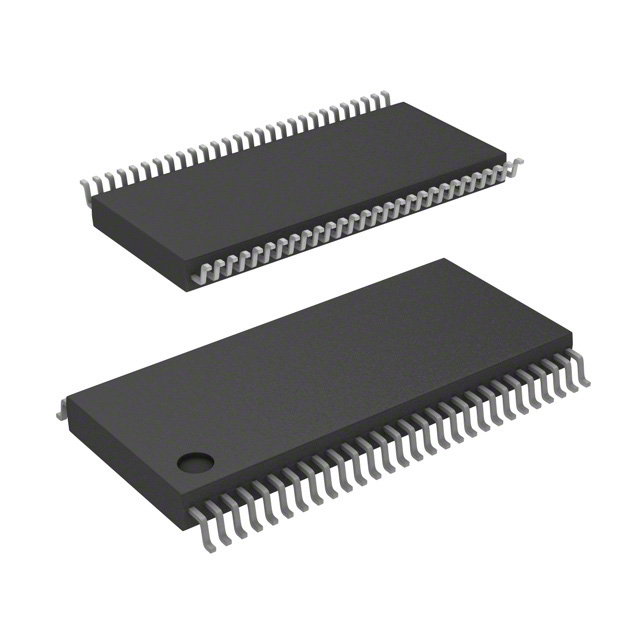

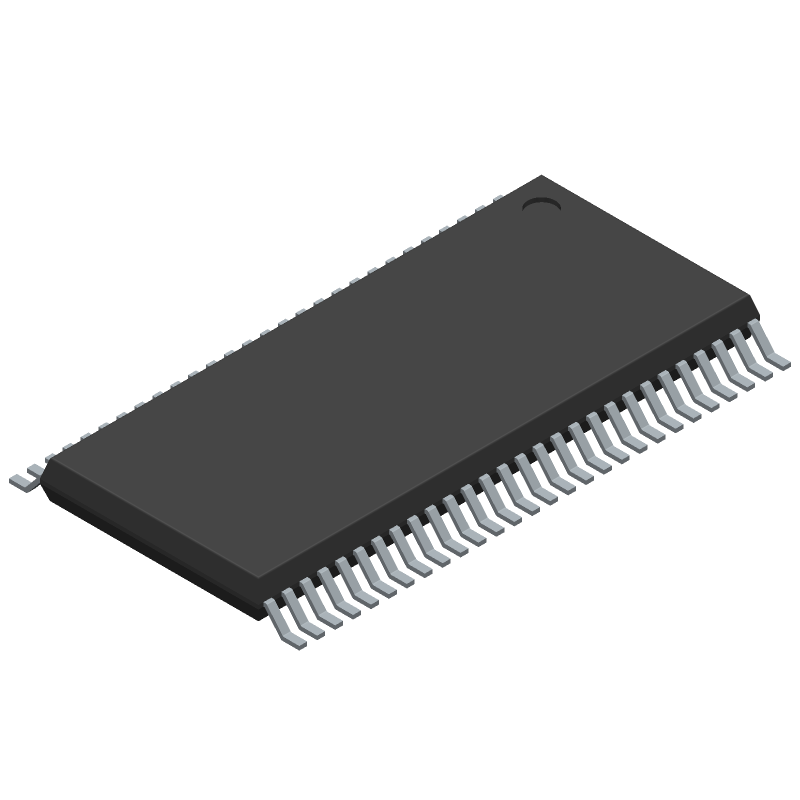

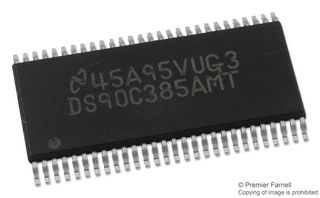

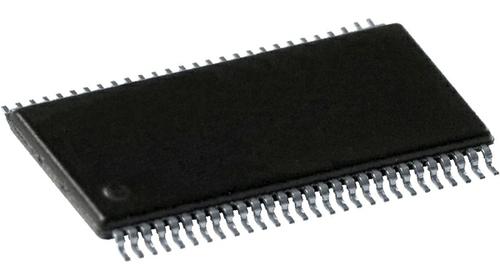

TEXAS INSTRUMENTS DS90C385AMT/NOPB 芯片, 发送器, LVDS , 24位, TSSOP-56
The DS90C385A is a pin to pin compatible replacement for DS90C383, DS90C383A and DS90C385. The DS90C385A has additional features and improvements making it an ideal replacement for DS90C383, DS90C383A and DS90C385. family of LVDS Transmitters.
The DS90C385A transmitter converts 28 bits of LVCMOS/LVTTL data into four LVDS Low Voltage Differential Signaling data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over the fifth LVDS link. Every cycle of the transmit clock 28 bits of input data are sampled and transmitted. At a transmit clock frequency of 87.5 MHz, 24 bits of RGB data and 3 bits of LCD timing and control data FPLINE, FPFRAME, DRDY are transmitted at a rate of 612.5Mbps per LVDS data channel. Using a 87.5 MHz clock, the data throughput is 306.25Mbytes/sec. This transmitter can be programmed for Rising edge strobe or Falling edge strobe through a dedicated pin. A Rising edge or Falling edge strobe transmitter will interoperate with a Falling edge strobe FPDLink Receiver without any translation logic.
This chipset is an ideal means to solve EMI and cable size problems associated with wide, high-speed TTL interfaces with added Spread Spectrum Clocking support.
电源电压DC 3.30 V
供电电流 65.0 mA
针脚数 56
耗散功率 1630 W
数据速率 2.45 Gbps
输入电流Min 10 µA
工作温度Max 70 ℃
工作温度Min -10 ℃
耗散功率Max 1630 mW
电源电压 3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 56
封装 TSSOP-56
封装 TSSOP-56
工作温度 -10℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DS90C385AMT/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
DS90C385AMTX 德州仪器 | 完全替代 | DS90C385AMT/NOPB和DS90C385AMTX的区别 |
DS90CR285MTD/NOPB 德州仪器 | 类似代替 | DS90C385AMT/NOPB和DS90CR285MTD/NOPB的区别 |
SN65LVDS93DGG 德州仪器 | 类似代替 | DS90C385AMT/NOPB和SN65LVDS93DGG的区别 |
