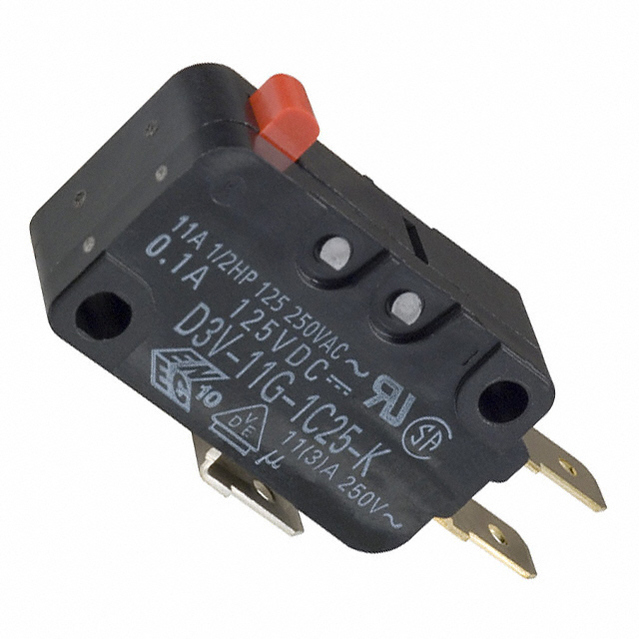

OMRON ELECTRONIC COMPONENTS D3V-11G-1C25-K 微动开关
Cost Effective Snap Action Switch, SPDT Switch Type

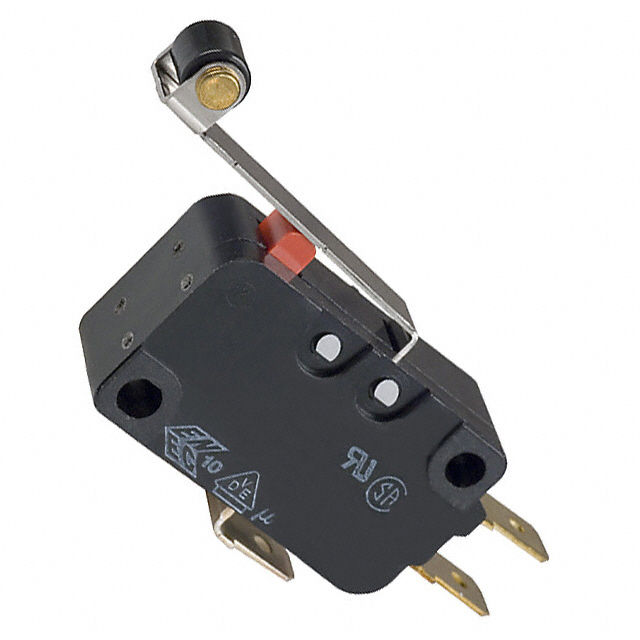

Reliable and safe snap action switch with external lever. It"s free of beryllium copper so it"s environment-friendly.- .
- * Maximum Operating Temperature:** 105°C. Self-cleaning contacts. Available in 6 A, 11 A or 16 A models and with internally or externally fitted levers. Two operating positions for external levers. Conforms to EN61058-1. ** Case Dimensions:** 10.3 mm W × 27.8 mm L × 15.9 mm H.
* Self-Cleaning Contacts
* Internal or External-Fitted Levers
* Two Operating Positions for External Levers
额定电压DC 30 V
接触器类型 Pin Plunger
额定电压AC 250 V
额定电流 11 A
触点类型 SPDT
额定电流Max 11A @250VAC
工作温度Max 105 ℃
工作温度Min -25 ℃
额定电压 250 VAC
额定电压DC Max 250 V
额定电压AC Max 250 V
安装方式 Quick Connect
长度 29.4 mm
宽度 27.8 mm
高度 15.9 mm
触点材质 Silver Alloy
工作温度 -25℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536507000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
D3V-11G-1C25-K Omron 欧姆龙 | 当前型号 | 当前型号 |
V15T16-EZ200-K 霍尼韦尔 | 功能相似 | D3V-11G-1C25-K和V15T16-EZ200-K的区别 |
V7-1C13E9 霍尼韦尔 | 功能相似 | D3V-11G-1C25-K和V7-1C13E9的区别 |
V7-1B19E9 霍尼韦尔 | 功能相似 | D3V-11G-1C25-K和V7-1B19E9的区别 |
