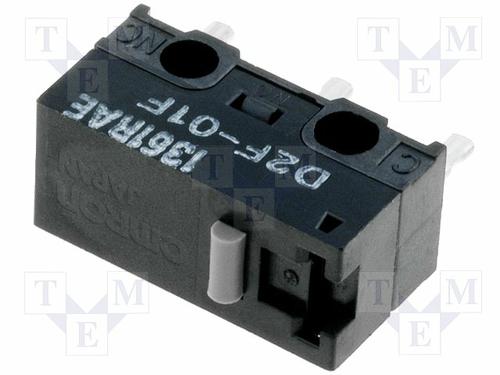

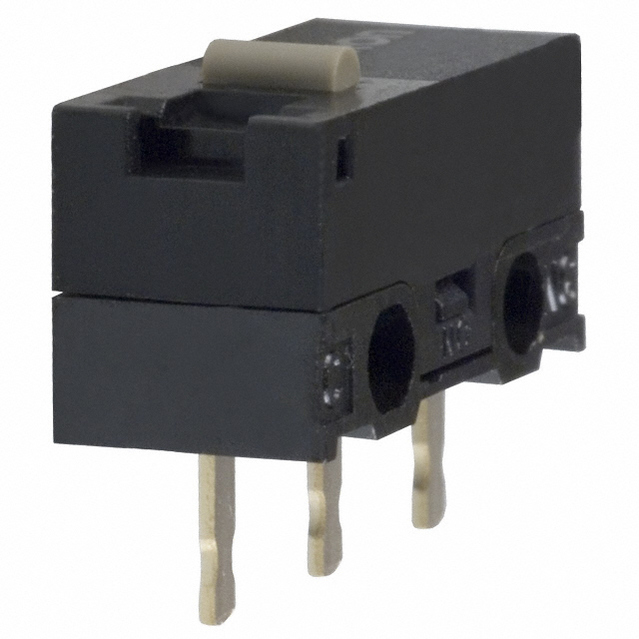

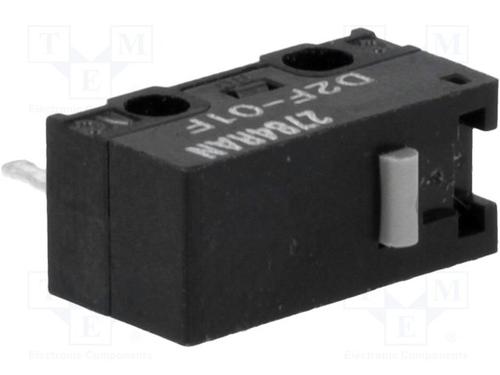

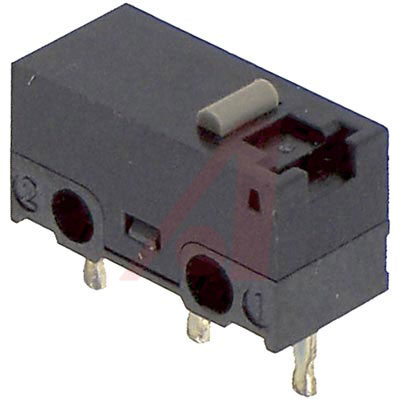

D2F-01F

基本/快动开关 PIN PLR LF uV/C PCB

SPDT 通孔

得捷:
SWITCH SNAP ACT SPDT 100MA 30V

欧时:
Gap fill

立创商城:
D2F-01F

贸泽:
基本/快动开关 PIN PLR LF uV/C PCB

艾睿:

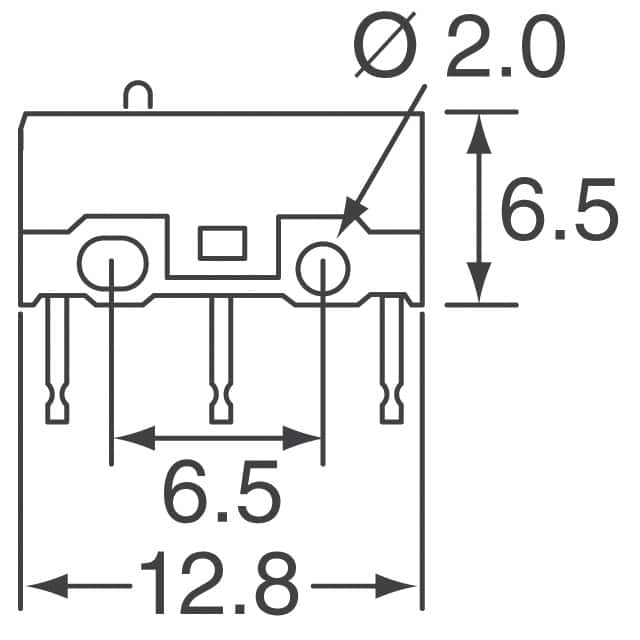

Only this D2F-01F snap-action switch from Omron can open or close your circuit at the fastest speed. This device has a maximum current rating of 0.1 A @ 30VDC. It has a SPDT configuration. This snap action switch has a minimum operating temperature of -25 °C and a maximum of 85 °C. The D2F-01F snap action switch has a PC pin termination style. The maximum DC voltage rating is 30 VDC. This product is 12.8 mm long, 7.5 mm tall and 5.8 mm deep.

Allied Electronics:
Switch; Pin Plunger; 75 g; 1 A @ 125 VAC; 125 VAC⁄ 30 VDC; Snap Action

Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Pin Plunger PC Pins 0.1A 30VDC 0.74N Screw Mount/Through Hole

TME:
Microswitch; without lever; SPDT; 0.1A/30VDC; ON-ON; 1-position

Verical:
Switch Snap Action N.O./N.C. SPDT Pin Plunger 0.1A 30VDC 0.74N Thru-Hole PC Pins

Newark:
# OMRON ELECTRONIC COMPONENTS  D2F-01F  Microswitch, D2F Series, SPDT, Solder, 100 mA, 125 VAC, 30 VDC

MASTER:
Switch Snap Action N.O./N.C. SPDT Pin Plunger PC Pins 0.1A 30VDC 0.74N Thru-Hole

GOPHER:
Subminiature Basic Switch 30VDC, 0.1A 0.74N OP. FORCE PIN PLUNGER PCB TERMINALS

Electro Sonic:
Switch Snap Action N.O./N.C. SPDT Pin Plunger PC Pins 0.1A 30VDC 0.74N Thru-Hole
