DC-WME-01T-S

Connect® Wi-ME 套件与模块Digi Connect® Wi-ME 是完全自定义的安全 802.11b WiFi 嵌入式模块。 Digi 集成套件提供了评估、快速原型开发和集成 Digi Connect® 嵌入式模块所需的一切，它使用功能丰富且经过行业公认的 Digi 即插即用固件。高度集成的 32 位 NS7520 ARM7TDMI 协同处理器模块 IEEE 802.11b，具有 WPA2/802.11i 安全性 高速串行接口，吞吐量达 230 kbps 五个共享 GPIO 端口选项 ### 随附集成套件包括：开发板、软件光盘、文档和电源。### Digi International

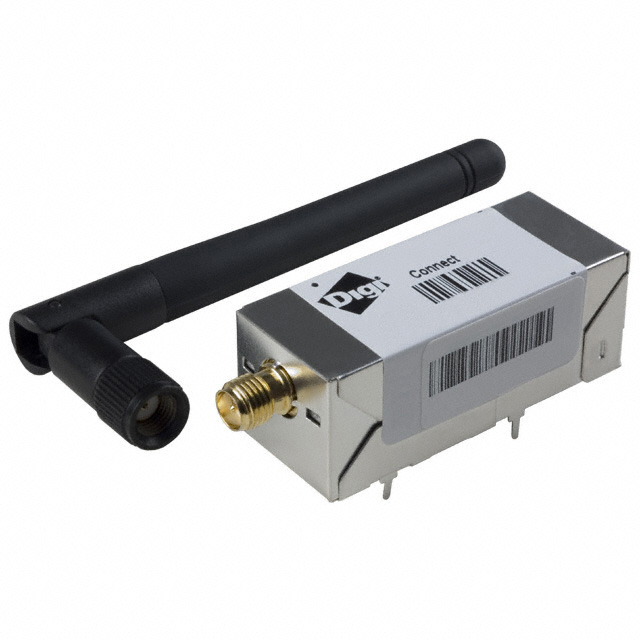

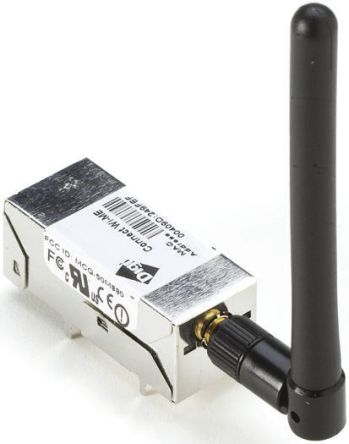

is an Digi Connect Wi-ME module with plug-and-play firmware single-unit pack with antenna. The Digi Connect Wi-ME is a fully customizable, future-proof and secure 802.11b wireless embedded system-on-module SoM with Wi-Fi WLAN support. Built on leading 32bit NET+ARM technology, the connector-style module is pin-compatible with the wired Digi Connect ME . It makes fully transparent 802.11b integration possible without the traditional complexities of hardware and software integration work. The Digi Connect ME family features the development and operational benefits of the iDigi Device Cloud. This secure highly scalable platform seamlessly ties enterprise applications and remote devices together. IDigi Manager Pro empowers IT, network operations and customer support organizations.

.

32bit Digi NS7520 processor

.

ARM7TDMI ARM core

.

Processor speed is 55MHz

.

4MB NOR flash and 8MB SDRAM

.

RJ-45 connector style with 20-pin micro pin header

.

Data rate of 230Kbps for serial interface

.

Hardware/Software flow control

.

Up to 10 shared with 1 external IRQ
